Resonant Repeater Stickers

Satur9 · September 17, 2024, 5:08pm

Jammyjellyfish · September 17, 2024, 7:10pm

neat. Switching away from the flex pcb? Is that for prototyping cost savings?

Satur9 · September 17, 2024, 8:24pm

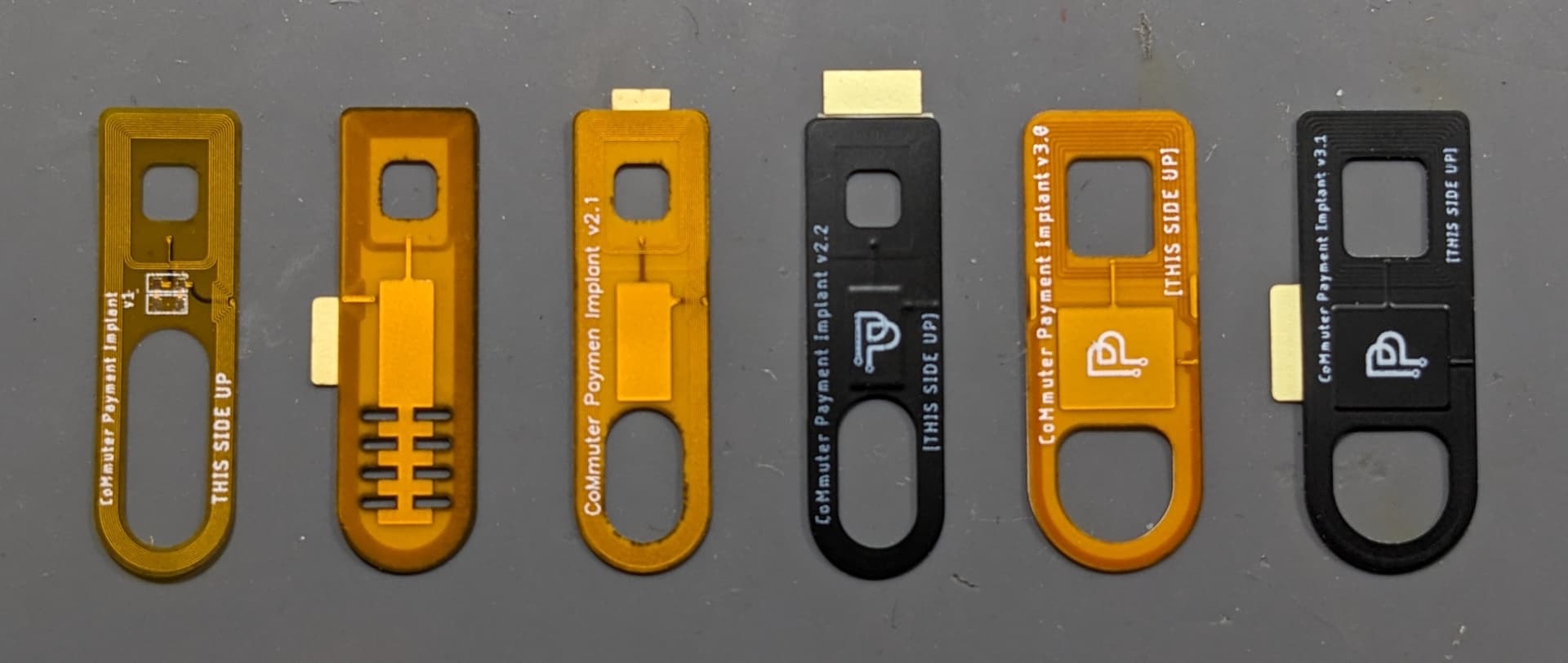

These are all flex PCBs. The CoMmuter project is finished now and it’s available for anyone to get made into an implant so before I packed everything away in archive I wanted to post a little “evolution of an implant” picture.

Eriequiet · September 17, 2024, 8:33pm

While you have that set up, you should put an x series, traditional flex and maybe a flexEM next to for scale

Pilgrimsmaster · September 17, 2024, 11:29pm

thats a cool line up

amal · March 15, 2025, 9:03am

This video is about long range wireless power but covers a lot of inductive theory, including showing how a resonant repeater coil works for inductive power transfer… I figured I’d post it to this thread.

Satur9 · March 15, 2025, 5:19pm

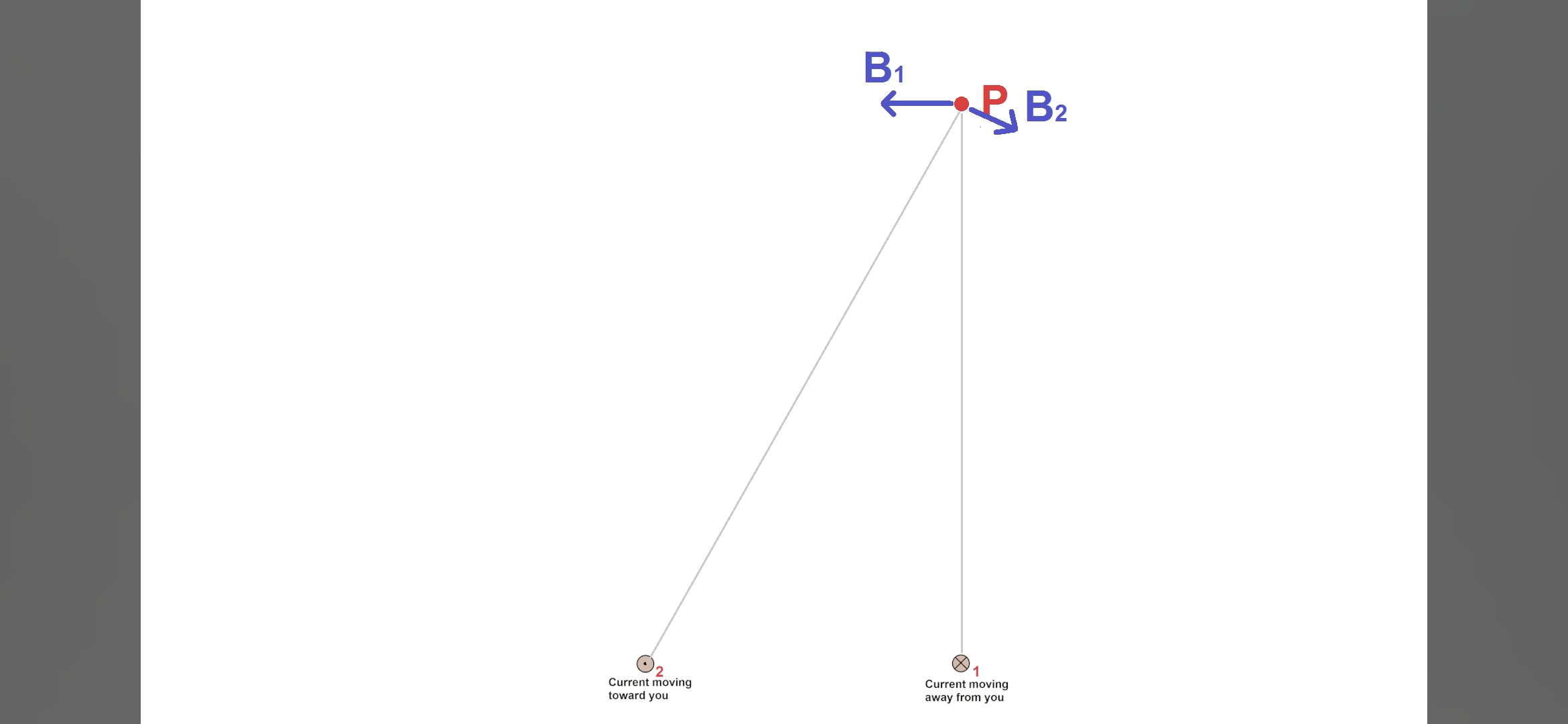

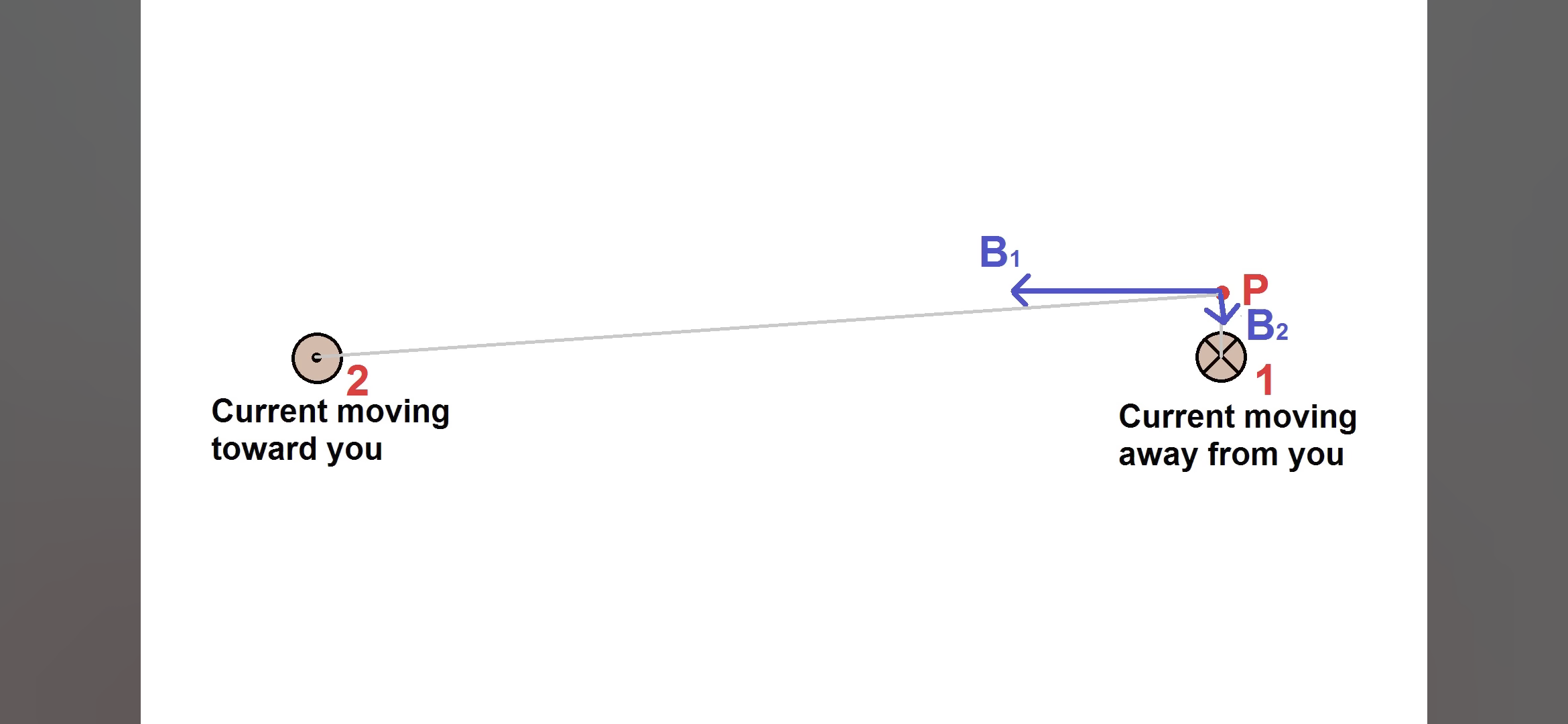

That was really good. Highlights a lot of the limitations though. I think the most valuable part was his explanation of why inductive power transfer drops off more like the inverse cube of the distance rather than the inverse square of the distance like far field electrical transmission.
