[Pilgrimsmaster]

@WingNutLG

I just couldn’t figure out how to post videos here

Im your post/ reply
Tap the up arrow and select the video

[WingNutLG]

I think I’m stuck in apple hell until I find a decent conversion app:

Sorry, the file you are trying to upload is not authorized (authorized extensions: jpg, jpeg, png, gif, ico, pdf, apk, zip, rar, mpg, mpeg, mp4, txt, stl, webp, apk, 3mf, mp3, wav, ino, heic, py, lua, mkv).

[WingNutLG]

[Pilgrimsmaster]

Ahhh, HVEC by default I think.

but looks like you got it sorted.

NOICE project

[Fibonacci]

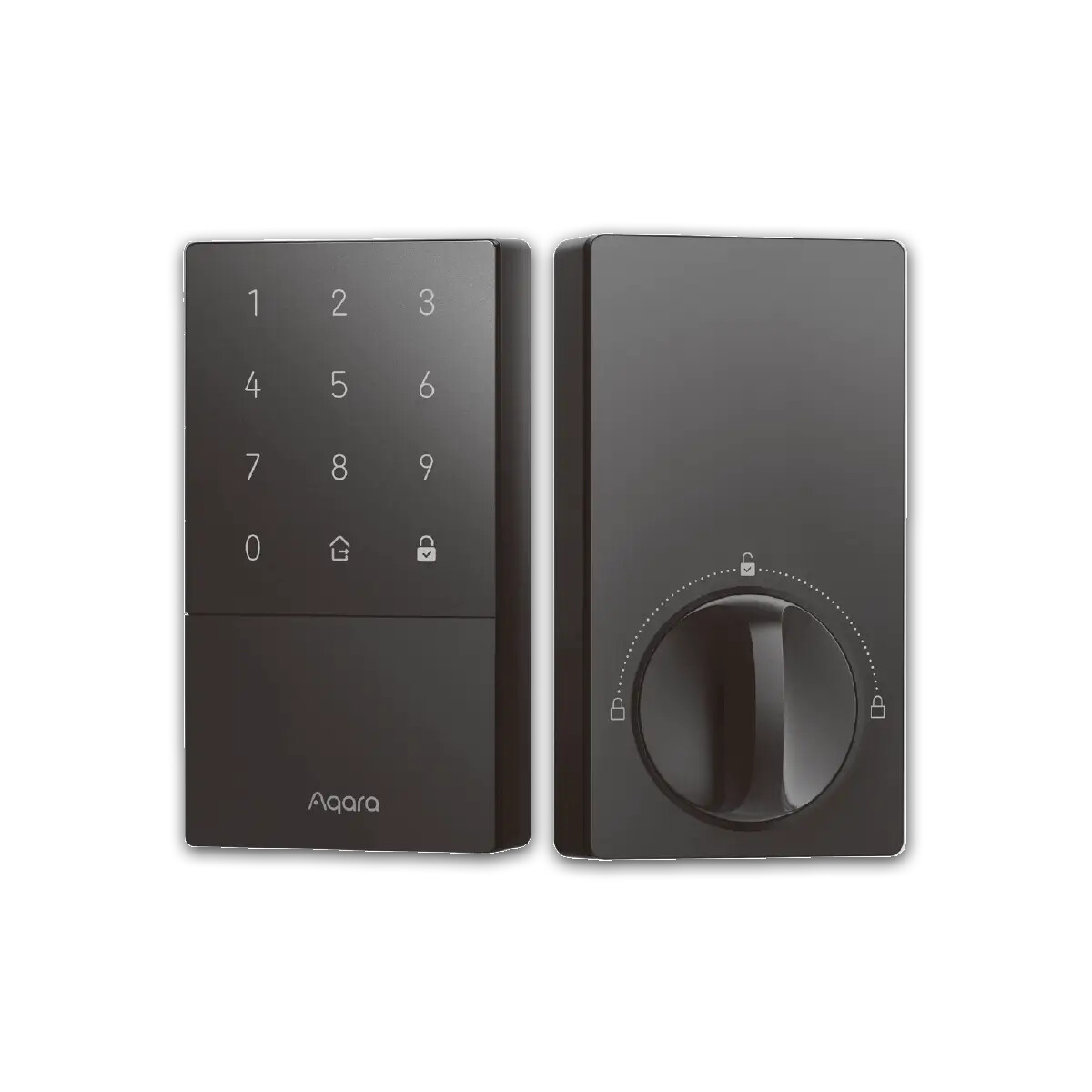

Aqara U50

Smart Lock U50 - Aqara

Works with xMagic, specifically the 13.56MHz Mifare Classic 1k chip. I’ve had the implant for a day and it reliably works with the lock.

[Fibonacci]

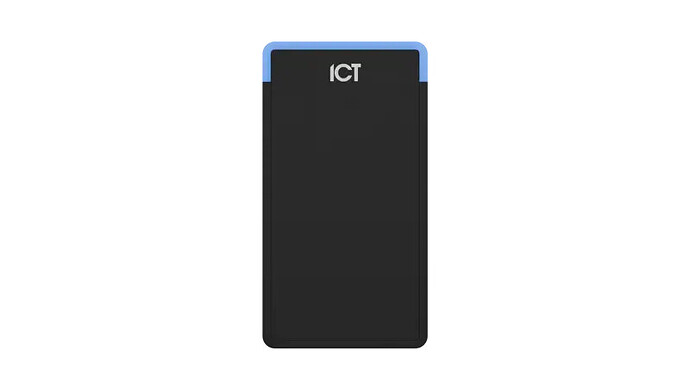

ICT PRX-TSEC-MINI tSec Mini
RFID Card Reader

tSec Mini RFID Card Reader | ICT

Works with xMagic, specifically the 125kHz T5577 chip.

[Pilgrimsmaster]

Thanks for sharing, I have added a reminder to update the spreadsheets when I get home (to a pc) as its far easier to on pc ratger than phone.

Keep 'em coming

[Fibonacci]

Thanks. Happy to help the community!

[Precision]

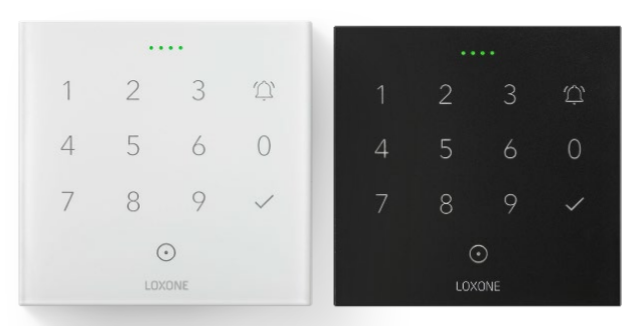

Loxone NFC Code Touch

works with my NExT chip and it couples surprisingly well, it can read it with my hand almost one centimeter from it (I have very skinny hands though).

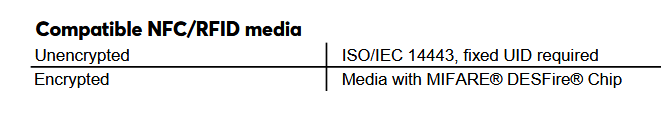

You can enroll any ISO/IEC 14443 card, I’ve tried Mifare Classic, DESFire EV1, EV2 and EV3 and of course NTAG216 physical cards and stickers, and basically every card you can emulate on a Flipper zero, the system just reads the UID unless you use a DESFire chip.

I guess it would work with xM1, xMagic and xSIID too, and the ideal would be something like an xDF2 or xDF3, I don’t know if all the x-series have the same range though. Sadly I don’t own any Flex to check if they work with this…

[Pilgrimsmaster]

@Precision

Loxone NFC Code Touch

thank you iwill add it next time om on a PC.
Do you have a shop link?

@Precision

works with my NExT chip

This will show as green

@Precision

I guess it would work with xM1, xMagic and xSIID too

This will show as orange “likely but not confirmed”

@Precision

the system just reads the UID unless you use a DESFire chip

Do you mean it utilises the actual DESFire encryption?

[Precision]

@Pilgrimsmaster

Do you have a shop link?

http://shop.loxone.com/enen/product/100480-nfc-code-touch-tree-anthracite

There are two versions, a wired one (Tree) and a sub GHz radio one (Air)

I should specify it doesn’t work on it’s own and that makes it kinda expensive, it needs a Miniserver (Loxone’s home automation server) that also has some on board dry contact relays on which you can wire the electric door strike or the maglock. The cheapest Miniserver version doesn’t have on board relays though so you’d need one, they make proprietary ones but you could also integrate Shelly devices locally via http requests.

@Pilgrimsmaster

Do you mean it utilises the actual DESFire encryption?

Yes it does

[turbo2ltr]

I’ve been using these. I have them on two doors.

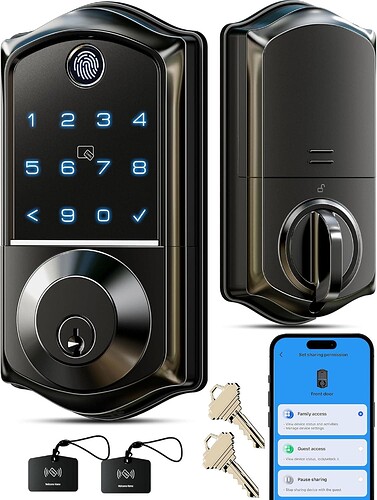

Veise VE017 Fingerprint Smart Door Lock

Veise VE017 Fingerprint Smart Door Lock, App Control, 7-in-1 Keyless Entry, Auto...

It works 90% of the time with my xNT.

[Pilgrimsmaster]

FYI

@TSMC55

I have found most of the bigger chains of hotels in Sydney, Melbourne and Brissy use DESfire and they can’t be copied.

I generally stay at Rydges Southbank when I’m in Brisbane, Pretty sure they use Mifare Ultralight.

I just got back from Christchurch yesterday and stayed at Rydges, which also use Mifare Ultralight.

We did start keeping a list of hotels and hotel chains and what they use, but we havent maintained it. (I should reinvigorate it)
One of the sheets here

Chip compatiblity matrix

[tangerineaxle]

Never noticed the hotel tab. Will try to start submitting data as I travel quite a bit.

Perhaps an extra row under the brand for card type would be helpful in case Hilton is running Mifare Ultralight and some day starts deploying Desfire into the system (random example)

[Pilgrimsmaster]

@tangerineaxle

Perhaps an extra row under the brand for card type would be helpful

Yeah, good idea, i was thinking the same.
It ALMOST makes the implant row redundant.
If you see “DESFire” card, you know its probably not going to work with your NExT…

[caj380]

I will post a full review after I install it in my nightstand, but I picked up the IKEA SOLSTOL cabinet lock today and I can safely say I like it way better than the old lock (I forget what it’s called) it allows you to enroll cards easily using the button on the side.

As for compatibility I was able to use it with my Apex Module with great range, FlexUG4 v1 (in NTAG216 mode) with great range, and my NExT.

The NExT required me to touch my hand to the lock, but after placing one of @Hamspiced ‘s repeaters (the sticker version) on the outside of my nightstand drawer, the lock can easily read my NExT though the 3/4” (19.05 mm) thick, solid wood, drawer front. Pretty impressive if you ask me!

I also tested it with a Mifare Ultralight 11 hotel key card and it worked fine. However I got a funky new ST25TB512-AC hotel key in Hungary last month and it would not recognize that

[Pilgrimsmaster]

@caj380

I like it way better than the old lock (I forget what it’s called)

Rothult

(***) IKEA Rothult cabinet lock

ROTHULT Smart lock [image] INTRODUCTION Are you looking to keep your stuff in your drawer or cabinet private from your siblings, parents, roommates, kids, significant other, etc.? This is an easy to install option that works with most furniture. It comes with two cards (I forgot what chip it is but it’s ISO 14443). You can program your own 13.56 MHz tag to use. TESTING INCLIDING READ RANGES I tried with an xNT. I can sometimes get a read at 1/4 inch away. Otherwise, it is difficult to get …

https://www.ikea.com/us/en/p/rothult-smart-lock-white-00429619/ ROTHULT

[Frank]

If you wanna add to the sheet, I can confirm the the xMagic for the RDM6300 (wrongly listed as 630) works fine to read the T5577 in the implant, read range is quite limited though.

[Hamspiced]

Yeah I’ve had a hell of a time with the rdm6300. Was this used on your esphome project?

[Frank]

Thats right, I used it with ESP-RFID
