Cloning to XM1+ with proxmark 3 (SOLVED KINDA)

kaizokuj · February 26, 2021, 7:59pm

Hi everyone, my landlords recently changed out our door and with it the lock.
I noticed they installed a lock that does NFC tags, so I asked them if I could use my implant, they gave me the go ahead, I added a regular tag to the thing and then dumped the content of the tag that works.
Now I’m trying to clone this to my xm1+, I am seeing the generally same instructions over and over but I’m not able to make it work.

When I try to use the hf mf recover 1 command on every write it’s either can’t select card or auth error.
I’m also seeing “multiple tags detected” a lot.

No Longer Relevant (I think)
Trying to change the UID failed a bunch and then at one point it said it failed but the UID was actually changed, now I’m trying to set the UID back to what it was and I can’t even get it to do that.

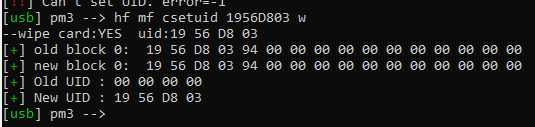

I’ve now been able to both change the UID back to the original

and the one I need it to be:

Okay so after I did that wipe, I can’t seem to read it anymore. I only get the following outputs and my phone can’t detect it at all.

Update

Since someone might look at this thread in search of answers, I figured I’d update.

First of all, if you are using a proxmark 3 rdv 4 like me, keep the case on the antenna, for some reason I got SUBSTANTIALLY better reads with it on.

To undo the wipe issue that was created, I used the following command “hf mf cwipe”, that got it being recognized again.

As for the cloning itself, both the guides I linked are apparently not deprecated, I was instead recommended to use “hf mf cload” instead.

turbo2ltr · February 26, 2021, 8:46pm

You can’t just ask them if they can enroll your implant to their system?

Equipter · February 26, 2021, 8:47pm

the whole point of xm1s is to not have to enroll it, you should be able to change the credentials at will if you have the equipment on hand, which OP does

Equipter · February 26, 2021, 8:50pm

to me OP it seems like it snagged a miswrite and the coupling fell off halfway through, do hf mf cwipe and then try your hf mf csetuid 19566803 dont add the w on the end. that wipes the card and if you havent effectively written the ATQA and SAK it wont read as the card you want. it will pick up the fact a card is there but it wont be able to discern its a mifare classic. if you waanna hop over to the discord i can help you out some more

kaizokuj · February 26, 2021, 8:52pm

they don’t know how to enroll shit, they literally gave me the documentation master code and told me to go nuts (I mean, I’m paraphrasing)
I figured it was easier to just enroll a proper tag used with that door and then clone it, I normally do my cloning using a linux distro, not my proxmark but I want to learn how to do it with my proxmark so I don’t HAVE to bring a linux laptop with me everywhere, as well as my windows one.

kaizokuj · February 26, 2021, 8:55pm

Yeah, I had to load a cached version of a proxmark.org thread and found the cwipe advice there, which HAS made it readable again but it all looks like this but still says it’s wiped at the end of it…

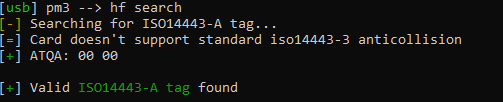

Now when I do hf search, it keeps getting hung up on this, even if the implant is nowhere near:

Equipter · February 26, 2021, 8:56pm

youre using the iceman repo yah?

kaizokuj · February 26, 2021, 8:57pm

I think so yeah.

Equipter · February 26, 2021, 8:58pm

yah thats good good

instead of doing hf search when you know you’re using 14a tags just use hf 14a info while hovering over the tag :}

kaizokuj · February 26, 2021, 9:00pm

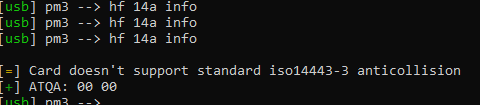

Nada, it’s like it doesn’t know it’s a 14a chip.

Equipter · February 26, 2021, 9:01pm

not to keep pushing it but would you be able to join the discord? much easier to debug there

kaizokuj · February 26, 2021, 9:02pm

Oh fur sure, I didn’t know there WAS a discord, I’m part of a slack server.

Equipter · February 26, 2021, 9:02pm

ill catch you when you land and we can go over fixin this in there

kaizokuj · February 26, 2021, 9:06pm

I think I’m missing something lol

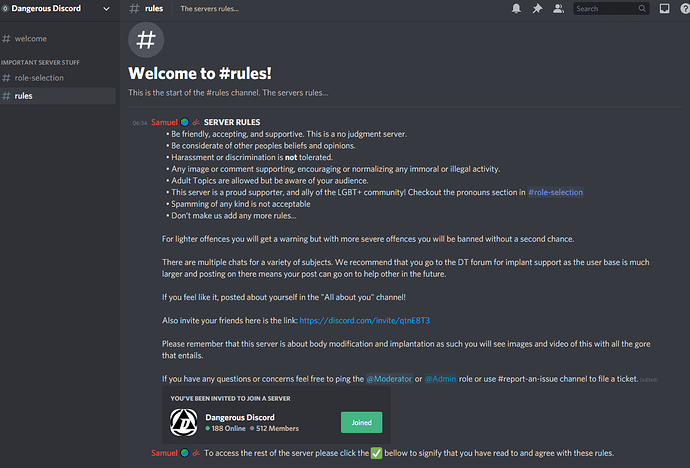

what check mark?

Equipter · February 26, 2021, 9:06pm

in the #rules channel

Equipter · February 26, 2021, 9:07pm

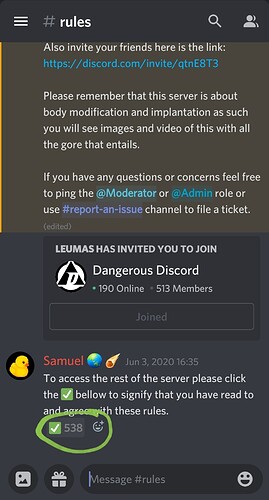

at the bottom of the message shopuld be a little tick

Pilgrimsmaster · February 26, 2021, 9:07pm

@Equipter / @kaizokuj , can you post back the results on here as a record if you could be so kind please?
Better to have it saved here than lost in the bowels of the Discord server

:

kaizokuj · February 26, 2021, 9:07pm

Yeah that’s where that text is from, I can’t see anything to press though.

Pilgrimsmaster · February 26, 2021, 9:08pm

“react to the emoticon”

Equipter · February 26, 2021, 9:08pm

gettin it fixed now :}
