I’ve deduced that my college keycard is probably a HF card as it can be read by the KBR1 and has a rectangular chip inside it. As I don’t have a proxmark I can’t diagnose any further. But I was wondering what my options for cloning would be as I’m getting a proxmark very soon!
Try TagInfo for android
Then if you need further assistance
if you have an iPhone
Nothing happened, I tested it with an NFC Tag as a control and that worked, but when I try scan the ID Card nothing happens.
That is strange
Can you plug the KBR1 into a computer
Open a text field
Scan your School key card
What is the output?
Are there any markings on the card?
Are there any markings on the reader(s)?
The KBR1 reads it as “d68900a2” consistently.
No out of the ordinary markings on the card, however it does have a magneto strip!
Do you have iphone or Android? Sometimes iphone hardware + iOS version can lead to nothing happening when scanning tags with no ndef record on them.
iPhone! I’ll try my dad’s phone when he gets home.
Here’s a picture of a reader that looks like the ones we have in college (less branding).
From that My GUESS is Mifare Classic 1k
Does he have android?
I just saw your post
Yep Mifare Classic
And maybe an android
and Amals below
Yeah what he said

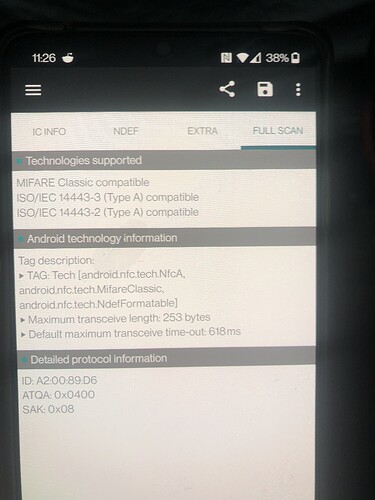

Nice. Your Android phone has an NFC reader chip inside that cannot read the memory contents of a classic mifare chip because it lacks a license for crypto-1 … this is why you don’t actually see the memory sectors… but we do see enough to know an xM1 or flexM1 should work as a clone target… just need a proxmark3.

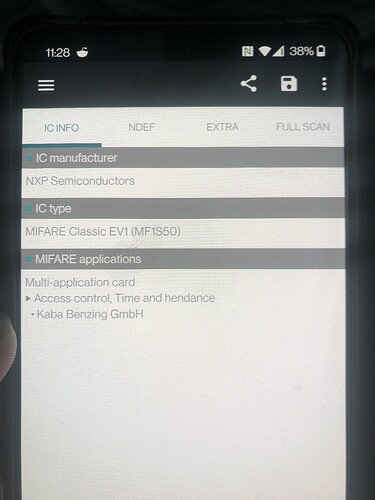

You can see the Kaba data set recognized by TagInfo so your system is a Kaba access control sysyem and the card will have to be fully cracked and cloned by the proxmark3… easy enough though… check the last vid on this page
So I won’t be able to use an NExT?
Just some wishful thinking!
Please see my “Logistical Note” here: Chipping myself for college - Cloning HID card to xEM with Proxmark3 RDV4 - #3 by identity
Thanks @identity, I’ll give it a look! My xM1 arrived this evening and it’s getting implanted on Monday. I’m actually so stoked to be finally getting my implants installed as there’s finally a registered DT installer in Ireland!
Both chips are installed! I’ve cloned my college ID successfully and it reads the same ID on the Proxmark.
My one problem is actually with the NExT…I’ve seen some threads regarding the password on the NExT; I’m unable to write to it (it can read fine though)
Is the problem with the HF or LF side of the NExT? The PM3 Easy is known to be very difficult to use with LF X Series implants due to a poor antenna. Either way though, I wouldn’t worry about it too much. Swelling can cause issues for up to a couple weeks. Since you just got it today, some difficulty reading/writing to it is expected. I’d give it two weeks, and if there’s still issues, we’ll be better able to help.
Are you trying to write with Proxmark3 or your phone?
also what are you reading, The default link to dngr.us ?
Basically the password is set to stop you accidentally bricking it, (protects memory blocks from being locked)
rather than preventing you from accessing the usability of it.
It brings me to the NExT webpage on the dangerous things website.
Just some regular NFC functions with NFC Tools on iPhone.
