INTRODUCTION
“This can allow the flipper to be controlled from your pocket using the Flipper app, and you can use the included cable to easily grab credentials from cards, fobs, or even emulate devices using the remote antenna without taking the flipper from your pocket.”
The Flipper Zero Field Extender by @HamSpiced at Midwest Gadgets.
this device will act just like the Flipper Zero Field Enhancer Sticker, BUT this is not just a repeater sticker, when connected to the IPEX cable it has a trick up it’s sleeve This is a passive, tethered coil system; You plug one end of the cable coil into your Flipper’s NFC field via the field extender, and the other end into your external, high-performance antenna.
Equally useful for standard applications or surreptitious sneaky stuff
TESTING INCLUDING READ RANGES
I did carry out range testing on this, But, I decided that this data was irrelevant, all you really need to know is, it works, and it works well
The Field Extender’s primary function is positional relocation, not range increase. However, by moving the antenna, you fundamentally change the coupling dynamic.
TEARDOWN

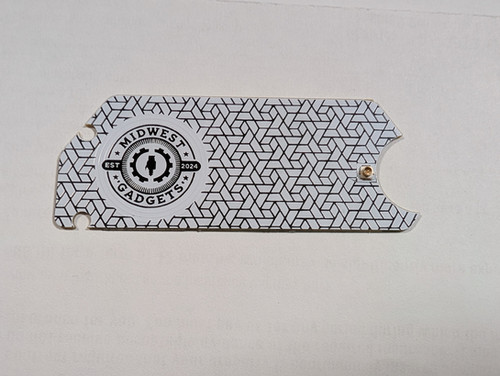

You get a PCB Flipper Zero Field Extender
In white
or Black
with a length of cable of your choosing
150mm
300mm
600mm
900mm
plus ( not yet listed on the store )
and

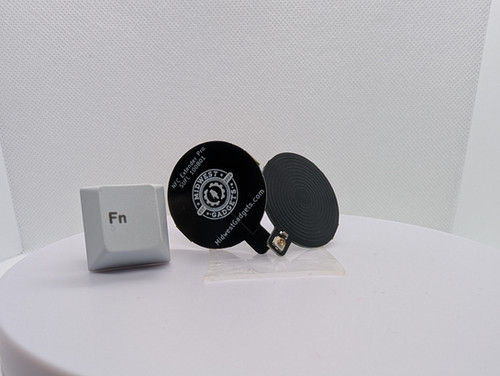

Multiple Antenna options
The “Standard” and “Card” are the options in the store
But also, compatible with other UFL - HF antennas
PROs
- Covert Operation: Hide the Flipper, Minimal operational signature.
- Access: physically access tricky readers
- Coupling: works well with implants including xSeries
- Simplicity: Passive device. No batteries, no firmware updates, no bullshit. It just works.
CONs
- I struggled to come up with something, so here goes:
- Tether: You are now physically attached to your target via a wire. Might look sketchy if not handled correctly.
- Hammy needs to make a Bluetooth version
- In all seriousness, There are no Cons, it works great,
“HACKS”
Compatible with other UFL - HF antennas, such as
Install guide:
Not needed, but I took photos, so here you go anyway
-
Perfect template and holes for alignment
-
3M sticker backing
-
Peel the backing
-
Stick the sticker
-
Perfect alignment
-
PRICE
USD$60
SUMMARY:
The Flipper Zero Field Extender is a truly versatile, covert field operations device.
Reliable and repeatable coupling is the key metric here. Range is not dramatically extended, but the ability to physically place the antenna where it needs to be is a discreet operational increase of 100%.
Performs well and does what it is designed to do
Verdict: Essential gear for the power user
