Giving my Keyboard Wedge a Brain

Projects
1

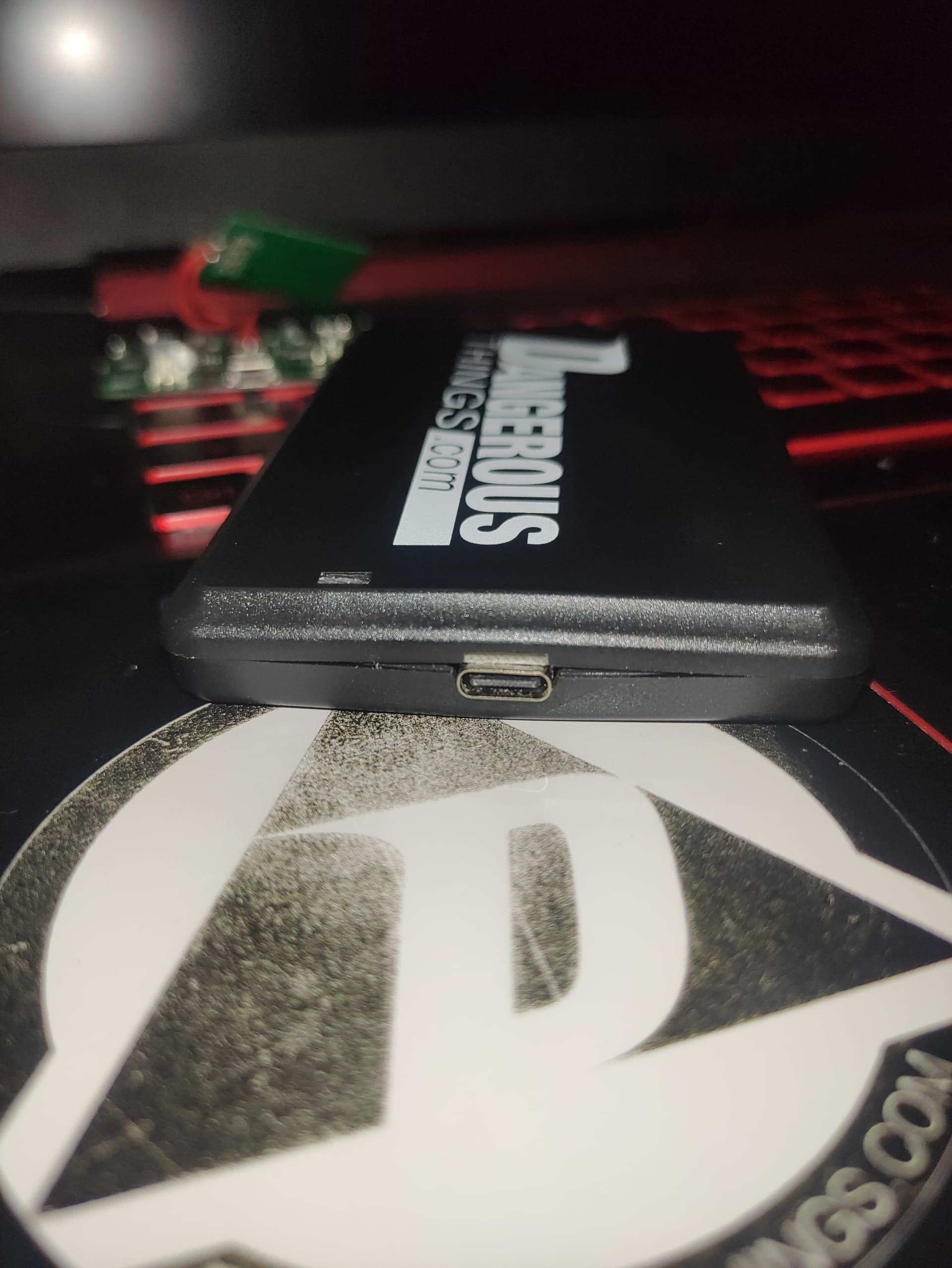

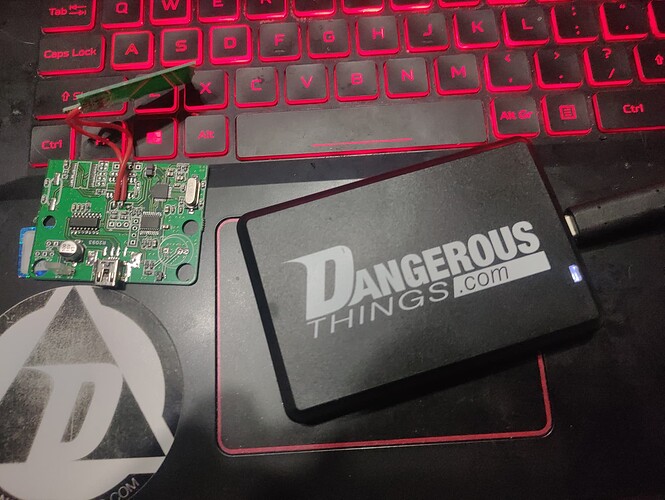

Finished product glamour shots(The circuit boards on the left is the original keyboard wedge.)

16437867586097165512689989351660
164378675860971655126899893516601920×1442 211 KB

16437830787714462304665714804539
164378307877144623046657148045391920×2557 219 KB

Everything fit! (Just barely!) Here is a list of the components: ESP32-S2 with a USB Type-C connector (https://smile.amazon.com/dp/B095YQLZGY/ref=cm_sw_r_apan_glt_i_D4JEY7DQA170XSYBEZ8V), Elechouse PN532 V4, 10k resistor, and a white LED.

714C7nH4rGS.AC_SL1500
714C7nH4rGS.AC_SL1500970×700 148 KB

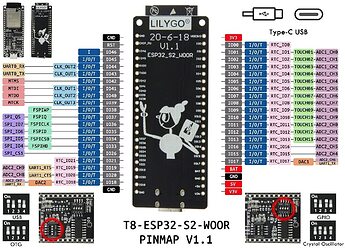

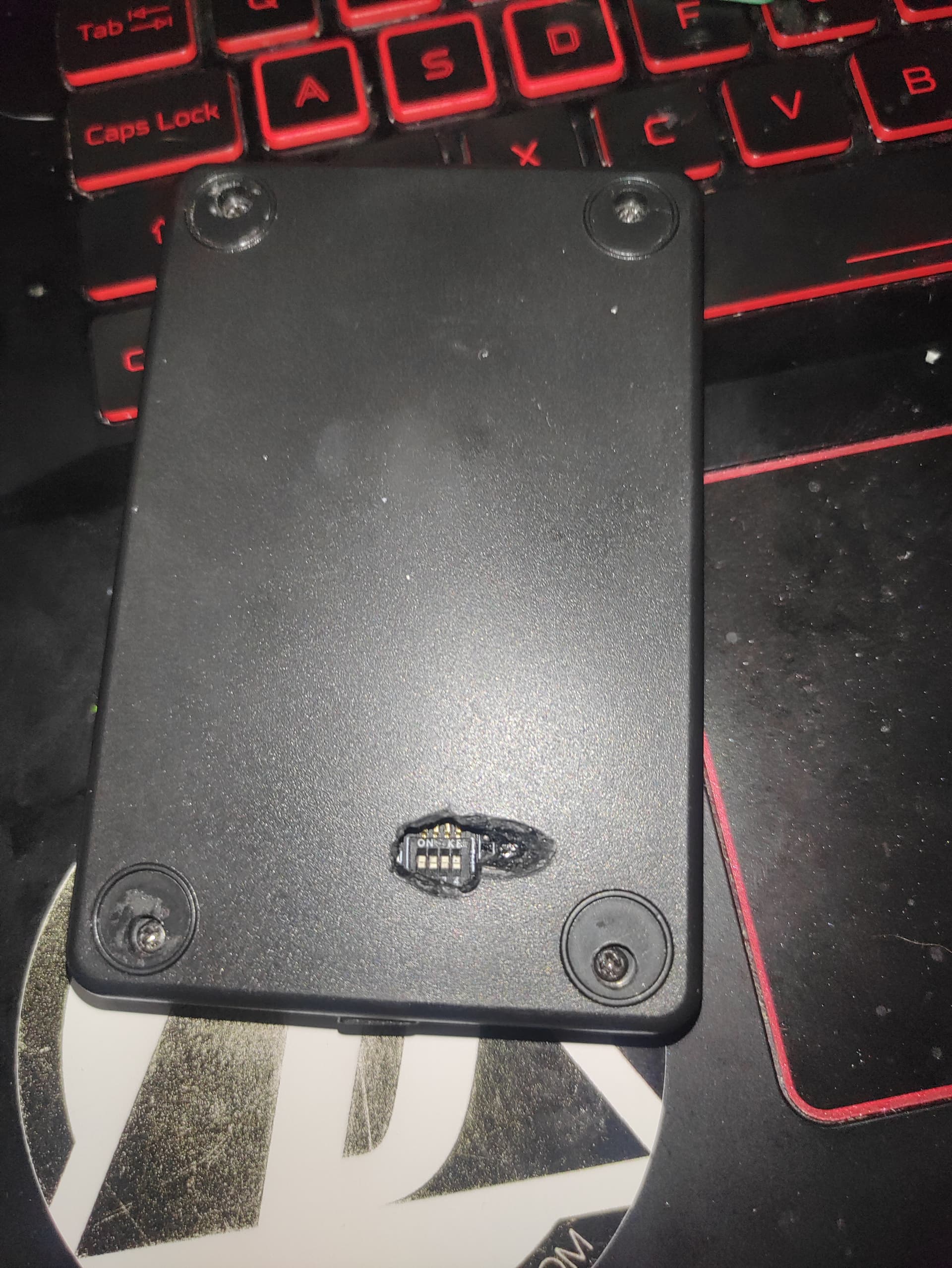

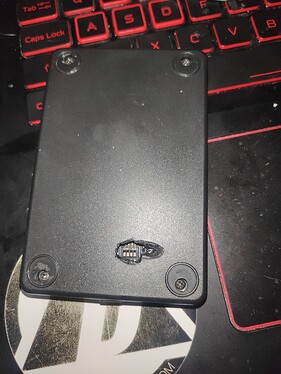

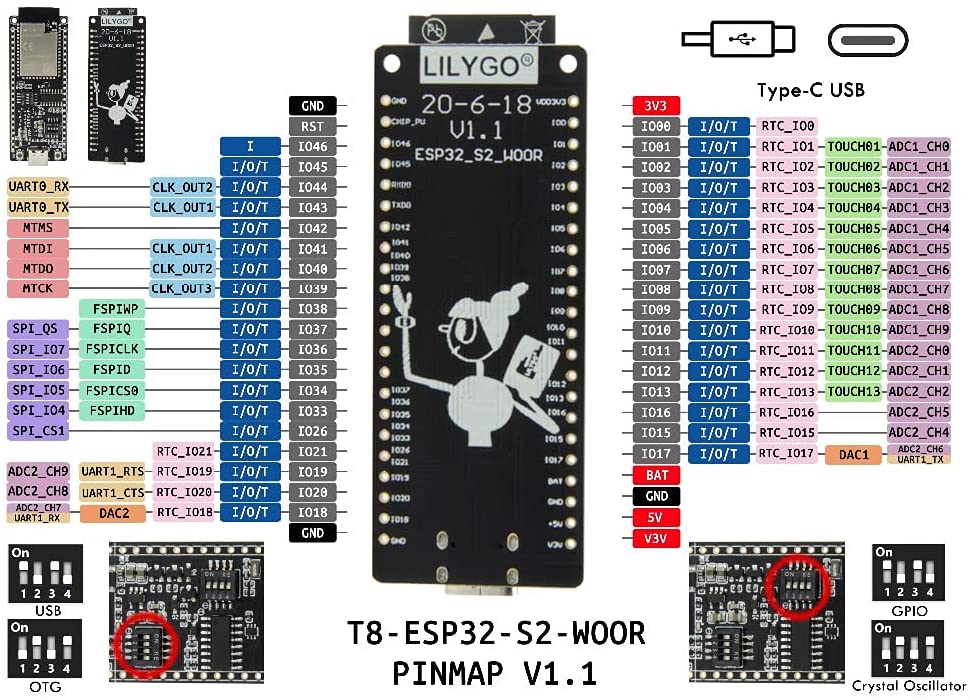

I chose this dev board by LilyGo because it comes with dip switches that can change the USB Type-C’s data pins from the ESP’s program-upload pins to the ESP’s OTG (keyboard) pins. I exposed these switches by using a hot screwdriver to melt a hole in the back of the black plastic casing.

16437839777465072110441562977232
164378397774650721104415629772321920×2557 457 KB

When wifi is enabled it runs at 170mA which is around 3 times the current of the original Dangerous Things Keyboard Wedge(60mA).

4 Likes
2

Cool :sunglasses:

But what’s it do?
for those of us illiterate I’m esp32 and arduino stuff (that’s related right?)

1 Like
3

The ESP32 chip has Bluetooth and WiFi built in.
So if programmed properly, you would now get a wireless wedge. I’m assuming that’s the goal …

Would you be interested in sharing the code?
I’m curious how you did it.

4

Nice - one of the best things about the DT wedge is if you break it or dismantle it, you can make a pretty simple xled lighting rig.

I dremeledmout the antenna and connected a 3.3v battery to it.

Now I have a pocket showeroffer

image1920×2560 290 KB

4 Likes
5

Currently I’m using the upgraded wedge to type a pre-stored password whenever an accepted tag is read. The wifi capabilities allow me to use Vivokey’s Scan API with my spark 2 for better authentication than just my UIDs. My end goal is to use Vivokey’s Key Value Store API so that the password can be encrypted and stored securely outside of the device.

I was wondering what I could do with my old wedge, great idea @LordSethos2000 !

3 Likes
6

@XEMON If you’re looking for the code for a wireless keyboard wedge:

A lesson I had to learn the hard way is the ESP32 ≠ ESP32-S2, the S2 version has the OTG pins required for pretending to be a USB keyboard. The ESP32 does not, meaning the ESP32 can only be a bluetooth keyboard wedge, not a USB keyboard wedge.

2 Likes
7

I will bear that in mind if I ever port my work to the esp32. I currently have two tasks left to do on the current version, then port to pico…

2 Likes
8

awesome, thanks.

Hows the range on the PN532-V4?
Ill add it to the database

9

The range is great! I would say it is worth the cost and extra shipping time to get an Elechouse PN532 over a knock-off PN532 that is closer. I can get successful scans of an xSeries approximately 1cm away from the circuit board.

Edit:
Keyboard Wedge Update! A user provided username and password is encrypted by the ESP32-S2 and stored on Vivokey’s servers using Vivokey’s Key Value Store API. The stored username and password can then be retrieved, decrypted, and typed on every authenticated scan.

Since I am new to the world of encryption and I am unsure what an acceptable level of encryption would be, I would appreciate if someone could provide some input/critiques on my encrypt() and decrypt() functions please?

1 Like
