Does anyone have a STL of the CoM conversion? I keep hearing it’s big, but I want to see it in person.
1 Like
I don’t, but what I can do is post these

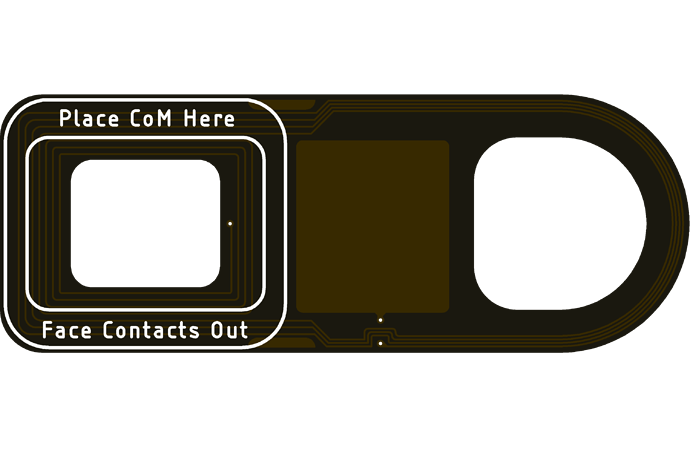

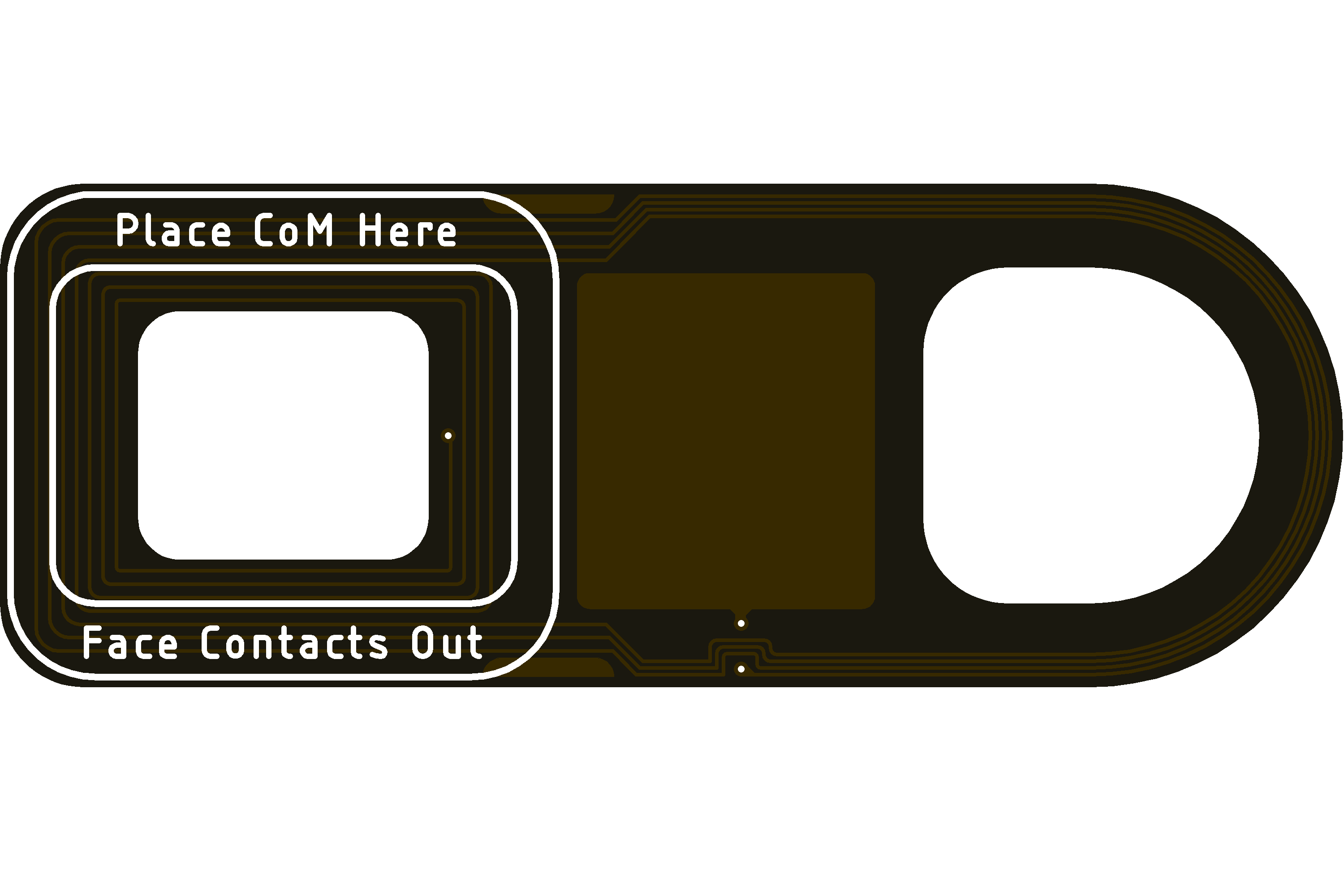

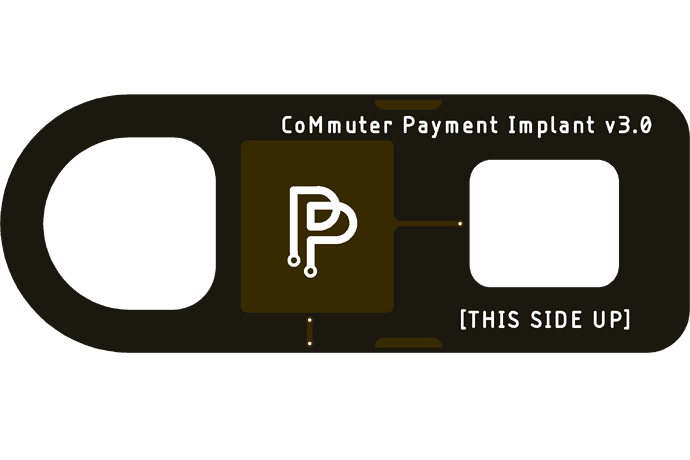

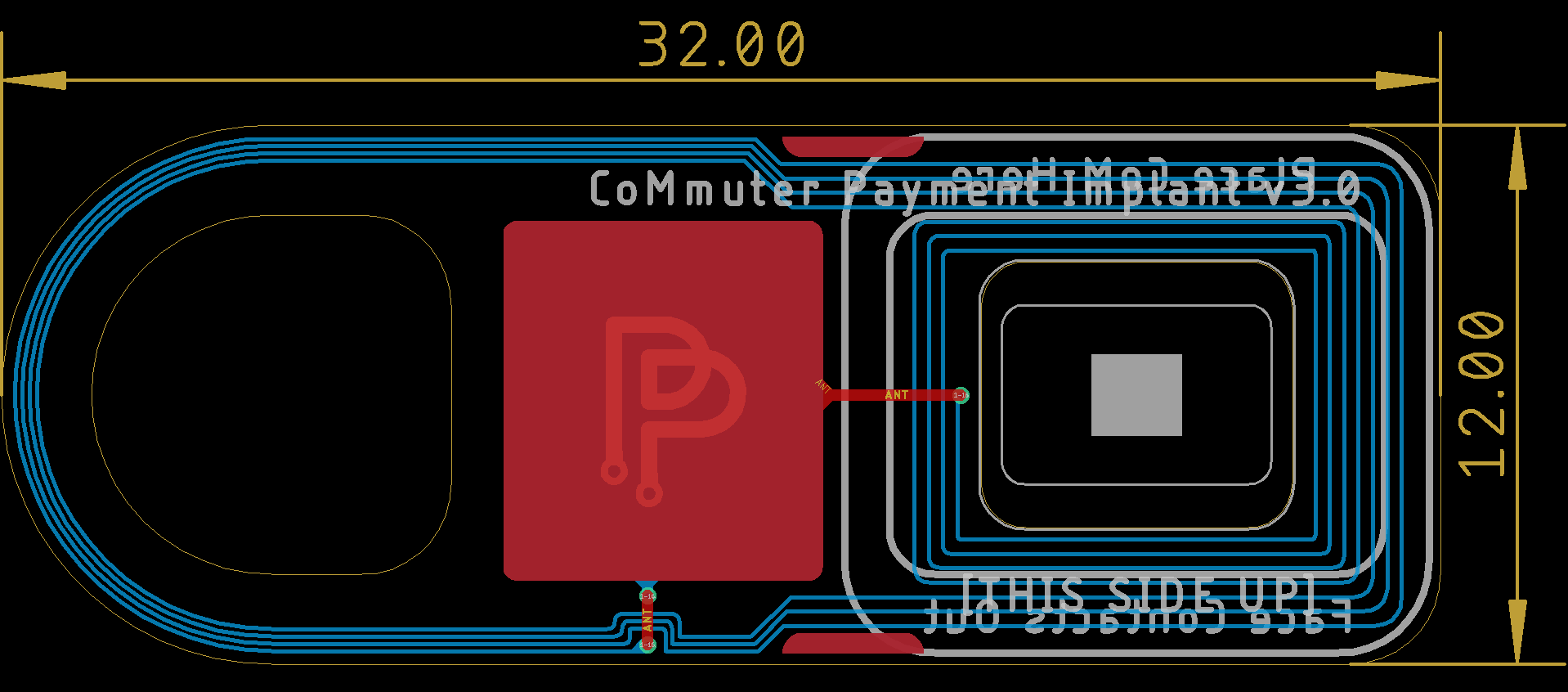

Below is the V3.0 and current is V3.1, I believe
And the Money shot…
I can knock up an .stl for you if you need it, just not for a couple of hours.
I’ll also add the .stl to this thread
5 Likes
With the encapsulation the final implant size is bigger than 32 x 12mm btw. You’d have to ask Amal for exact numbers but I think it’s roughly 1mm perimeter, so final size would be about 34 x 14mm
6 Likes

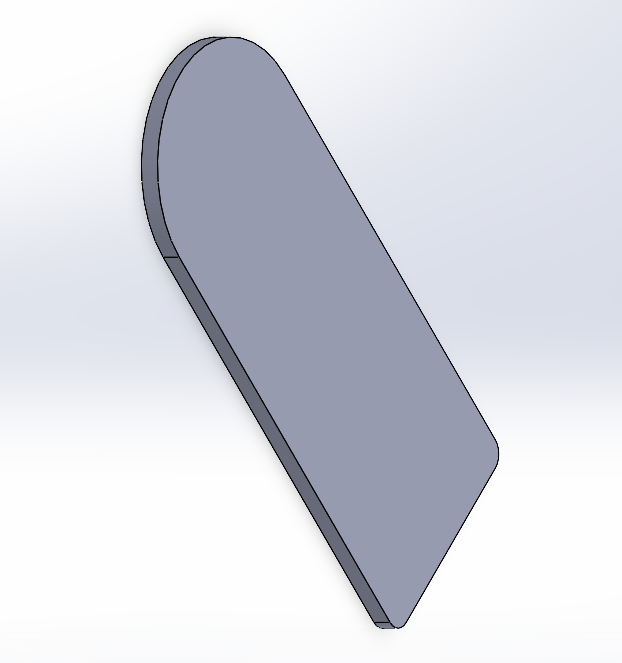

CoM Antenna
34x14x1mm
I could have increased the fillet of the corners, but for a space model, it should be fine
CoM.STL (8.9 KB)
7 Likes
I’ll just leave this here. CC BY-SA 4.0
8 Likes
FlexNT.stl (9.3 KB)
FlexM1V2.stl (11.6 KB)
Ish, corners might not be rounded right
2 Likes
here are the actual cutout files I use to trim the polymer with… the thickness is not accurate but the other 2Ds are exactly what the cutter uses;
flexM1v2.stl (16.3 KB)
8mm x 28mm bellow.stl (16.3 KB)
P71 module 14x35.stl (16.3 KB)
flexNT.stl (16.3 KB)
3 Likes

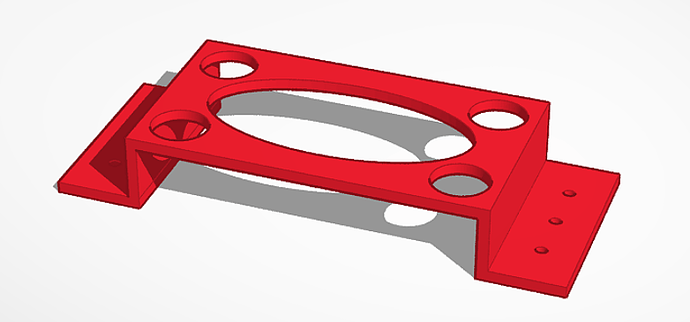

OmniKey mount
2 Likes
3 posts were merged into an existing topic: The anti:prohibited:-derailment:railway_car: & thread:thread: hijacking:water_pistol: thread:thread:
Here is the new line of magnets.
Note: the radiuses are eyeballed at best, kinda feel right-ish; let me know if i need to adjust any of them (thanks @Chimpofm for the feedback)
m08s.STL (285.8 KB)
m0422a.STL (189.5 KB)
m0426a.STL (187.2 KB)
m1148a.STL (191.9 KB)
m0490a-r1.STL (248.7 KB)
