(***) Keysy from Tinylabs.io

(***) Keysy

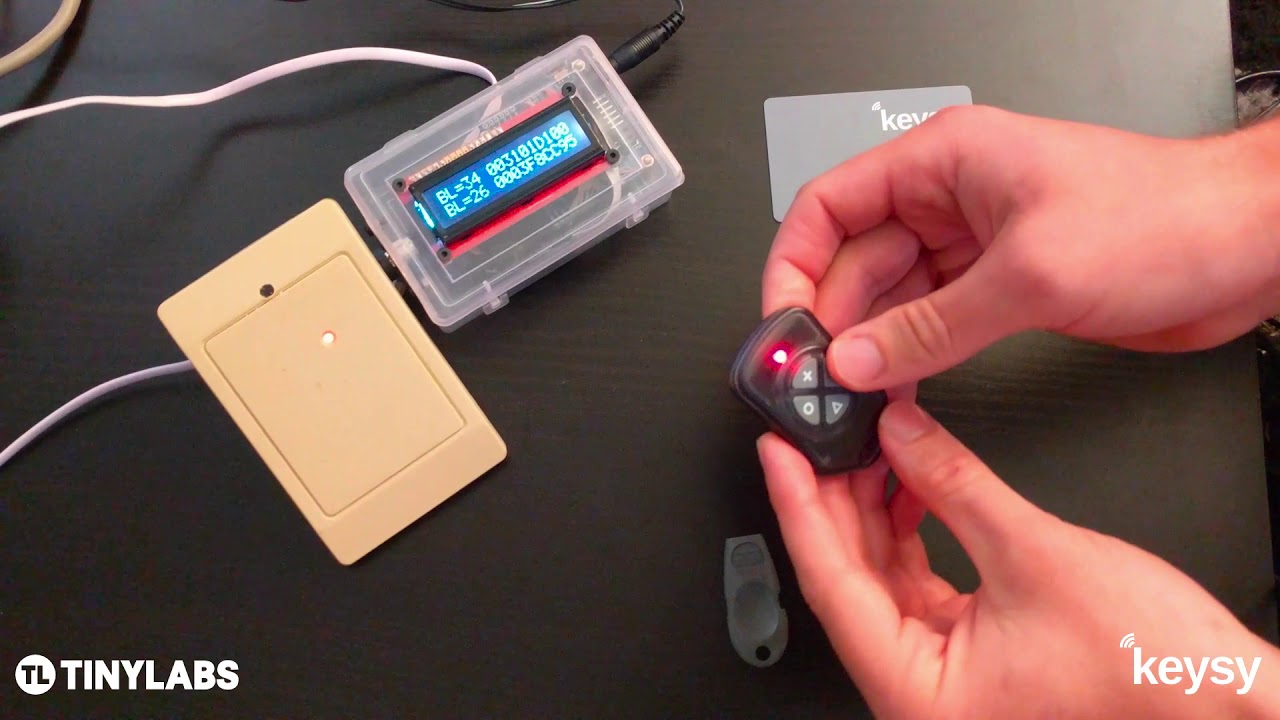

A small Key Ring style, Low Frequency 4 position Reader / Writer.

SOURCE

Tiny Labs
Hak5
Lab401
HackmoD
OzHack

CAPABILITY

First, keysy must be programmed to electronically mimic your current RFID credentials.

After that it’s as simple as holding keysy near the door reader and the keysy will electronically mimic the original RFID device.

In addition, Keysy has the ability to duplicate any previously read keycard/keyfob onto the included blank rewritable keyfob.

Frequency: 125kHz

Modulation: AM, FSK, PSK

Tag storage: 4 unique tags

Battery life: Approx. 2 years

Battery: CR2032

Supported Models

  • HID Prox (Proxcard, ISOProx, ProxKey)
    (Emulation not supported on multiClass readers, can still clone to rewritable)
  • HID Indala (Motorola Indala)
  • EM400x, EM410x, EM420x
  • Noralsy (KCP3000)
  • Farpointe Pyramid
  • Keri (KC-10X, MT-10X, PKT-10X)
  • Kantech ioProx
  • DoorKing (DKProx) [Not DKProx Long Range]
  • AWID (Low frequency only – CS-AWID, GR-AWID, KT-AWID, PW-AWID)
    (Emulation not supported, can still clone to rewritable)
  • Radio Key (SecuraKey RKKT-01, RKKT-02)
  • Viking
  • Visa2000
  • Schlage IBF iButton (RFID portion only)
  • T55x7 compatible keycard/keyfob

To be aware of:-
WARNING
The antenna and power output is NOT suitable for xSeries (xEM, NExT)
and unfortunately due to Keysy not being open-source, even if it could write to a FlexEM, the propriety writing system will prevent you from doing so

PROs

• Small
• Many mode options
• 4 button card memory
• Writable to Keysy cards and fobs ( also a CON )
• Easy to use

CONs

• Proprietary
• Not suitable to write to xSeries

PRICE

$45

Summary:

A tricky thing to rate, it is good at what it does, but loses 2 stars for having a propriety writing system requiring you to buy only compatible Keysy fobs

Rating by the community :robot:

PLEASE ONLY VOTE IF YOU HAVE ONE OR HAVE USED ONE

:star: = :poop:
:star::star: = :pleading_face:
:star::star::star: = :neutral_face:
:star::star::star::star: = :grin:
:star::star::star::star::star: = :trophy:

Keysy 1-5 :star:
  • 1
  • 2
  • 3
  • 4
  • 5

0 voters

I neglected to mention the Keysy Easter Egg

Pressing the code up, up, down, down, left, right, left, right (+ + △ △ ○ :white_medium_square::white_medium_square:) will switch Keysy between long range and auto transmit mode. When in long range mode you will need to press a button for Keysy to emulate. After the code the LED will flash: One long red LED = long range mode, One long green LED = auto transmit mode.
