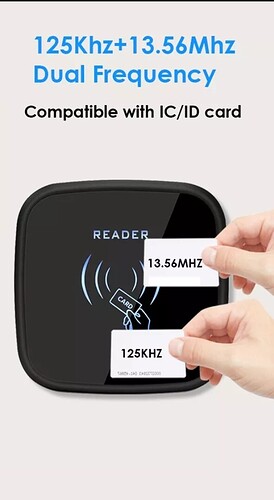

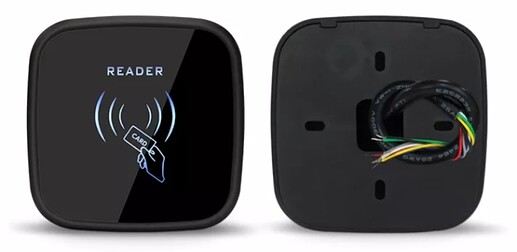

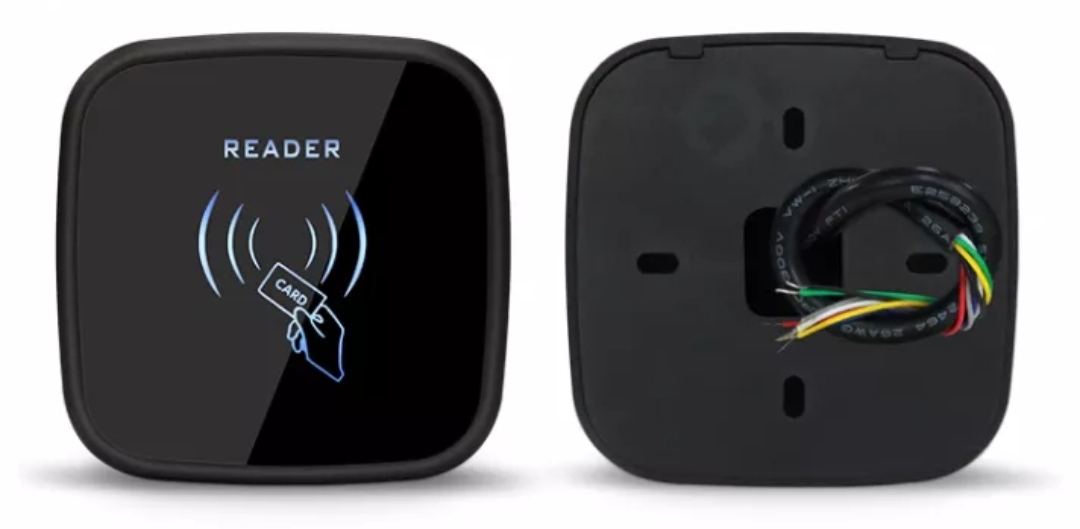

For starters, “Long Range RFID Card Reader 125KHZ 13.56KHZ”
it is LF & HF, but long range is subjective
I had the reader connected to a power supply @ exactly 12V

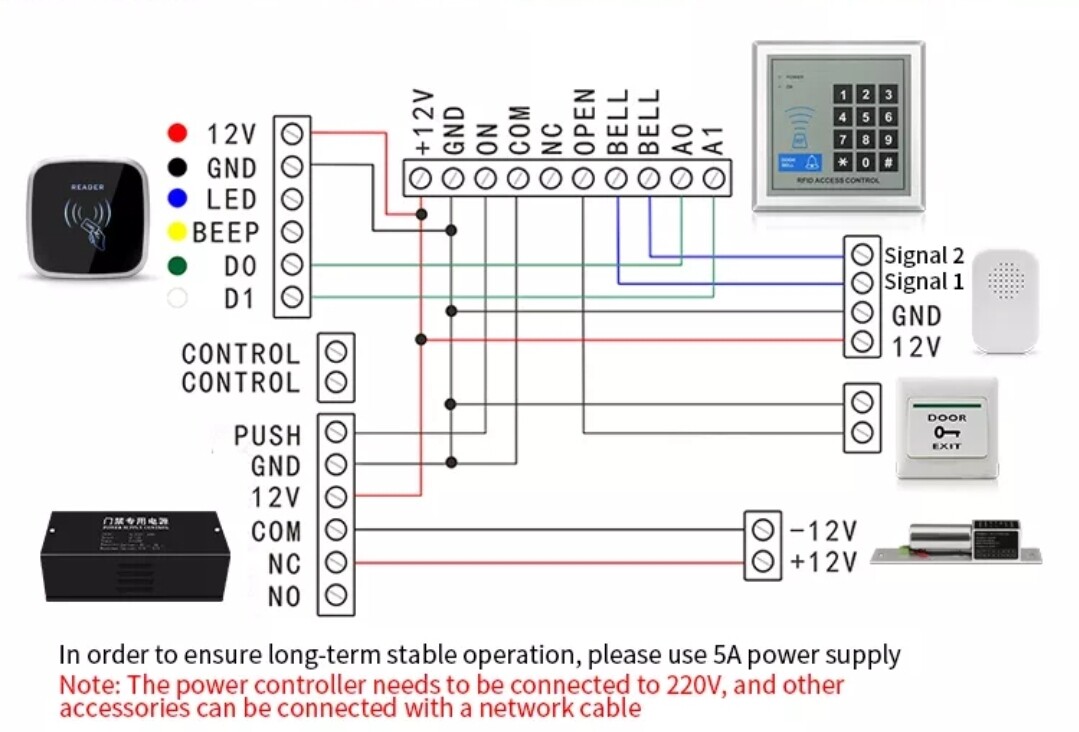

If you want to use this reader, you will need to attach it to some form of access system
This works reliably, Top edge if you want to read HF, center if you want to read LF.
HF Antenna placement, top edge only ( in mine atleast )
LF Antenna Centre ~ 30mm x 30mm

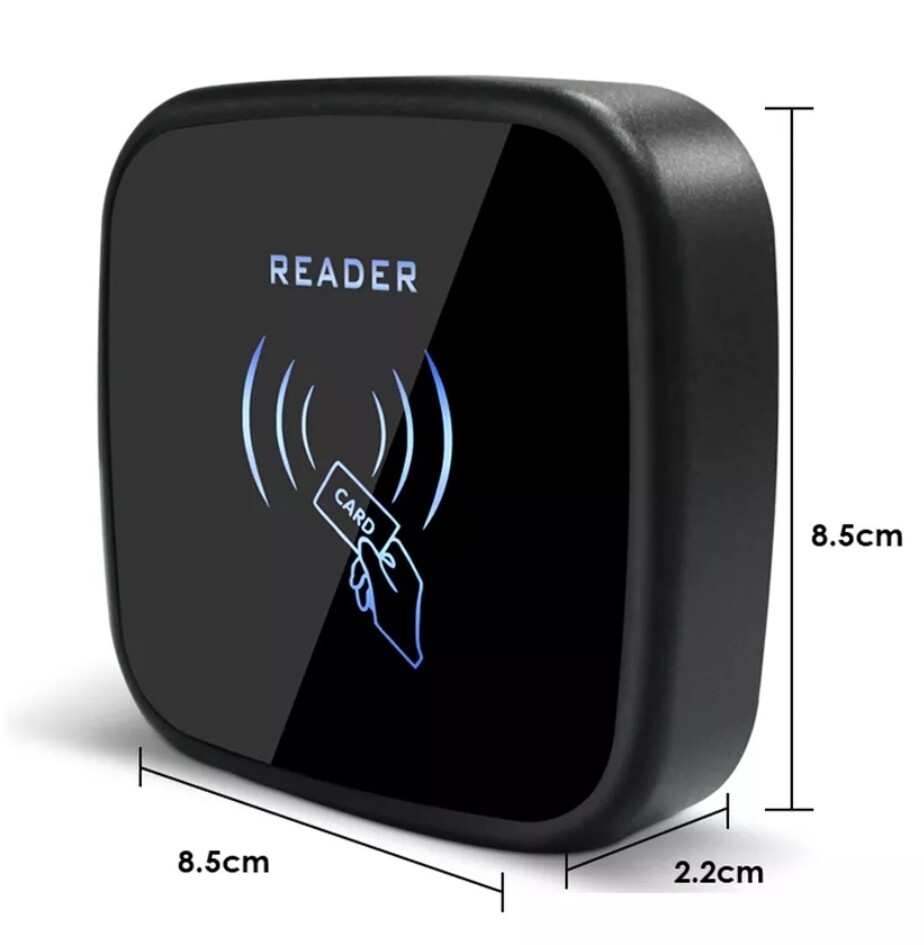

IP68 Waterproof…apparently

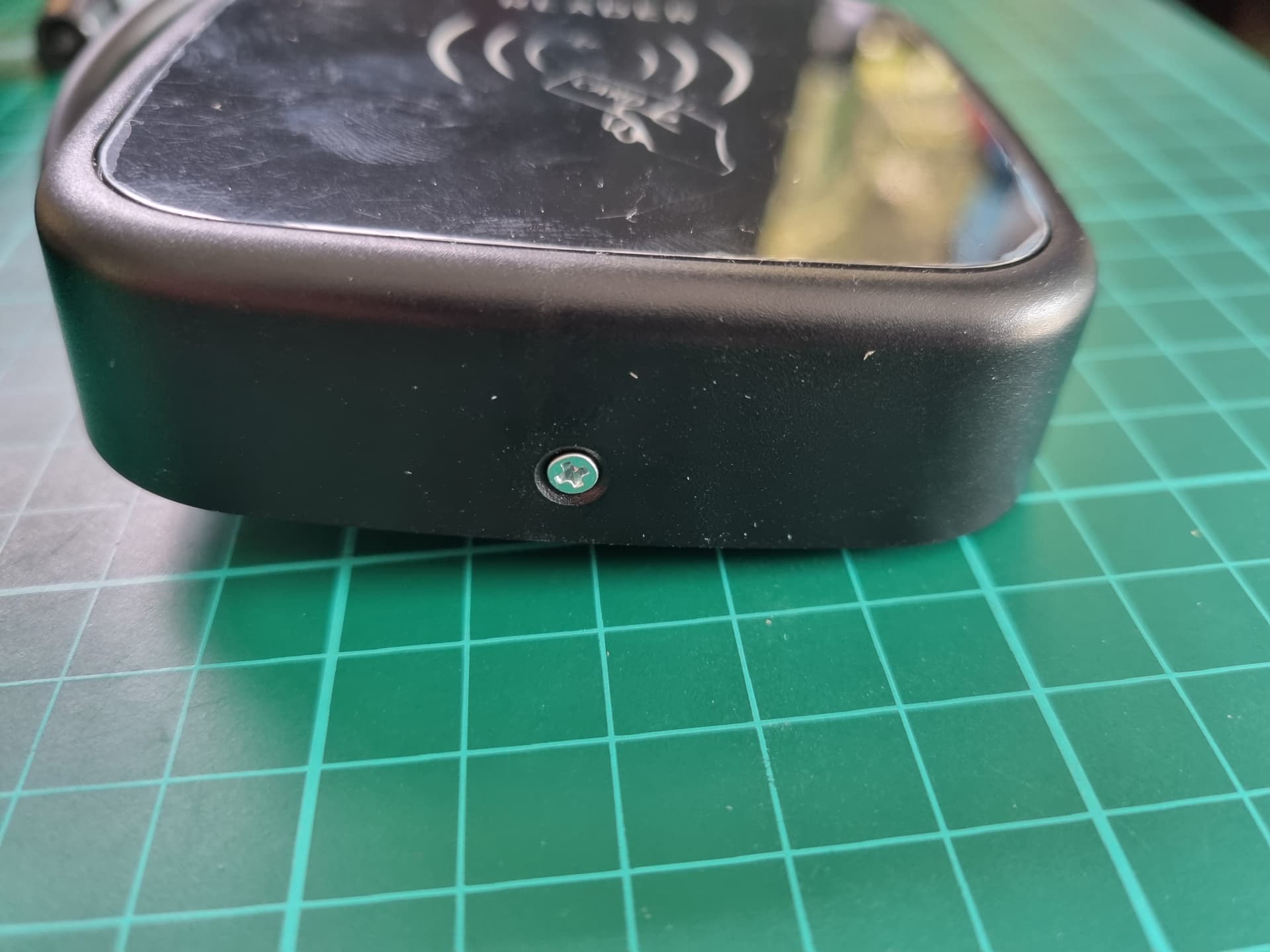

Remove the small Phillips screw, then gently pry open

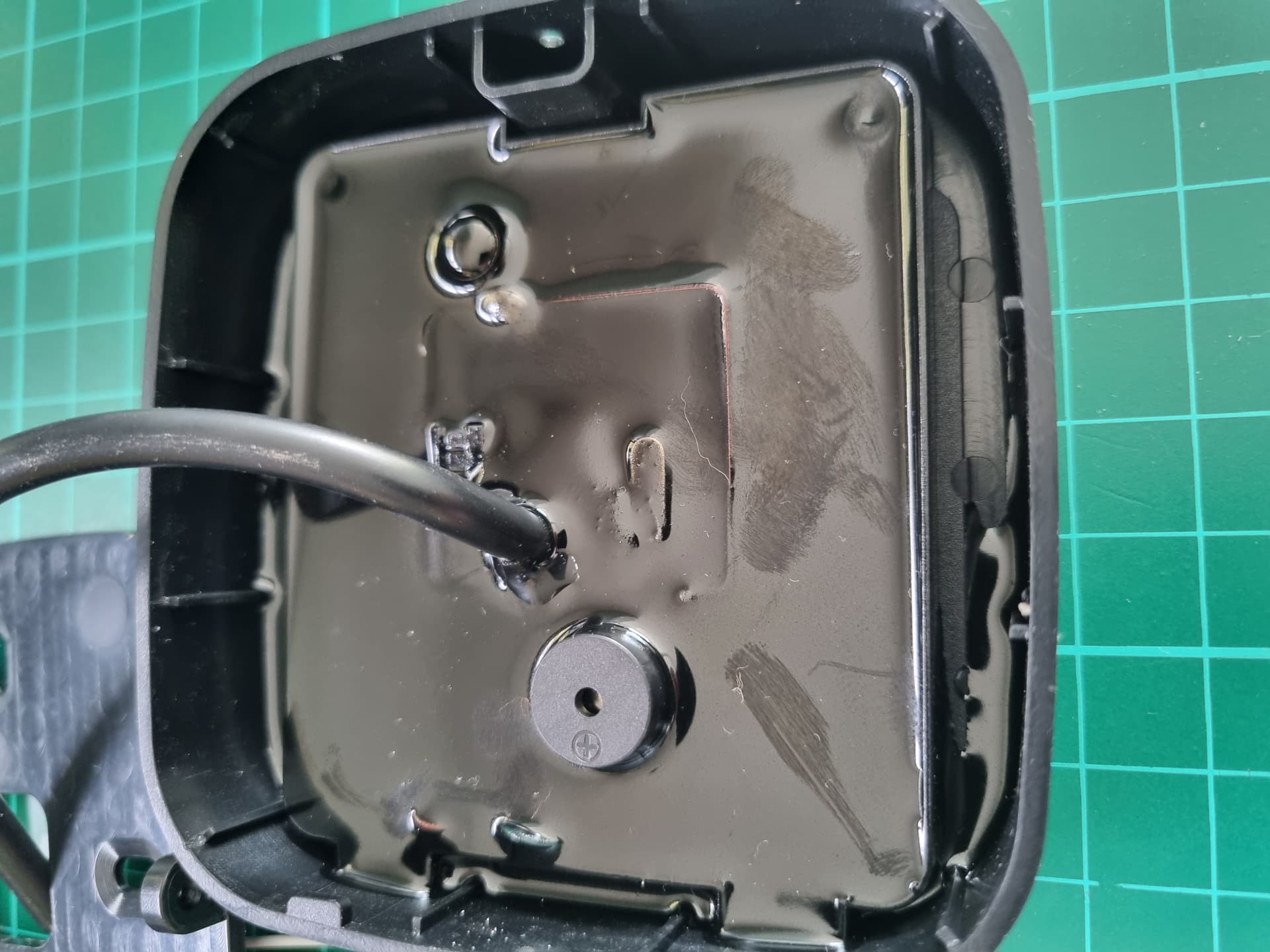

The Piezo Buzzer is mounted on the underside of the board to get access to, glue fill or remove…
DUTY Cycle
Technology Tested
- Reads xSeries, 10mm - contact with reader required, Flex a little more.
- If its not listed, I did not test it
- The read range
LF
WORKS WITH
CARD
EM41** 70mm
IMPLANT
xEM / NExT <10mm
DOESN’T WORK
HID
AWID
Indala
FDX-B
Fairpoint
Gallagher
Viking
HF
WORKS WITH
CARDS
DESFire EV1 20mm
DESfIre EV2 40mm
DESFire 7 byte 10mm
NTAG216 40mm
Ultralight 70mm
Mifare S50 70mm
Mifare S70 10mm
IMPLANT
xM1 <10mm
xNT <10mm
FlexM1 <10mm
FlexNT <10mm
DOESN’T WORK
iso15693 iCODE
DESFire 4 byte
APEX Flex
NExT
Rating by the community
PLEASE ONLY VOTE IF YOU HAVE ONE OR HAVE USED ONE
=
=
=
=
=
- 1
- 2
- 3
- 4
- 5
0 voters
Average rating: 3.
I gave it it works with xSeries, many HF but I removed 2 because there are limited LF mode options and because of the limited range, Also I am not convinced it is IP68
