I was trying to write the magic ring using Hf MF restore —1k -f file1 -k file2 and I’m not exactly sure what I’ve done I’m new to this but can someone tell me if I bricked it?

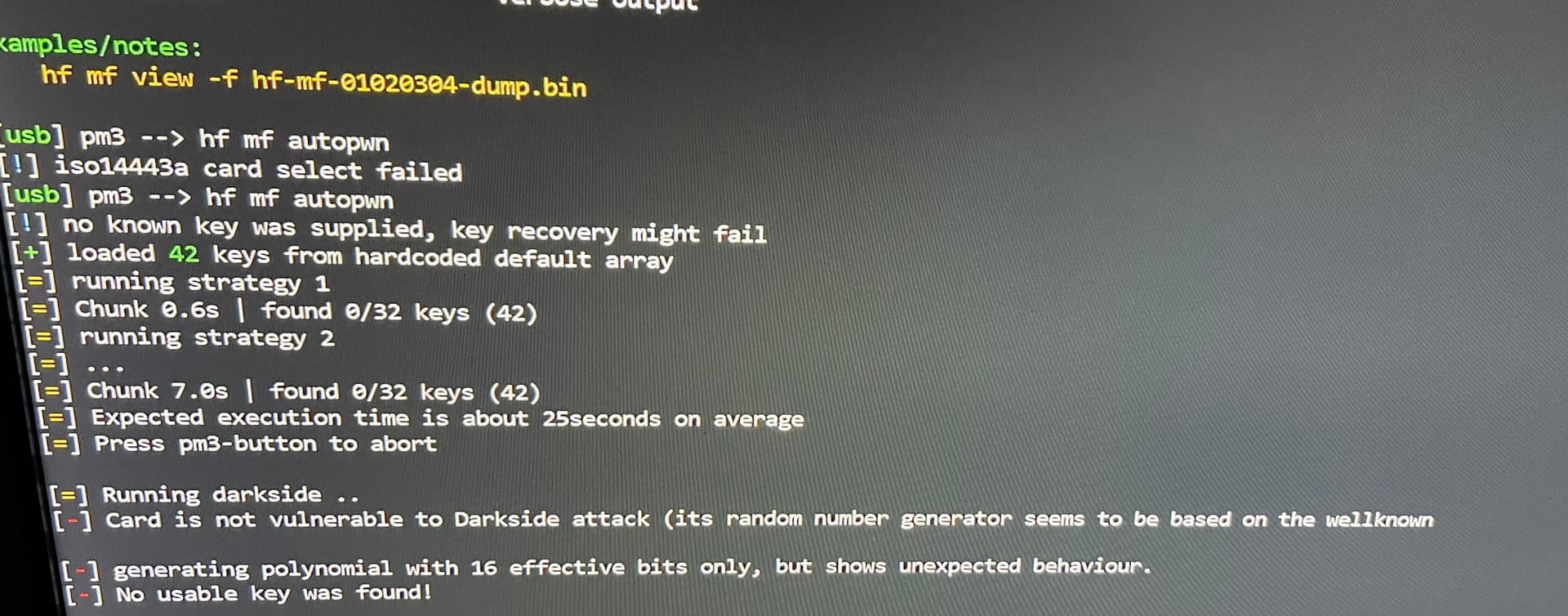

(Forgive the poor quality I had to take photos on my phone.)

I was trying to write the magic ring using Hf MF restore —1k -f file1 -k file2 and I’m not exactly sure what I’ve done I’m new to this but can someone tell me if I bricked it?

(Forgive the poor quality I had to take photos on my phone.)

I just don’t think succeeded. I’m pretty sure the restore command works with Gen 1A magic mifare chips and the ring is a gen2.

Basically this means that sector 0 probably was not written to, but the rest of the sector is very well may have.

The difference is that a Gen 1A chip uses a magic backdoor command to open all sectors for writing regardless of access bit settings. A Gen 2 chip does not have a back door command but simply lets you write to all sectors using normal wire commands, including sector 0.

I haven’t checked the restore command in a while… there might be an option for supporting Gen 2 chip types

cload is for gen1, restore is for gen2 chief

So do you think it’s something I can fix or should I get a new one?

sorry there wasn’t enough info in the screenshots to show what’s happening after you attempted to clone to the ring. are all the sectors locked or something?

can you try to scan it with

and share the full scan data?

Yeah… hate to be the bearer of bad news, but there’s a lot of errors in there. I’ll try to break it down.

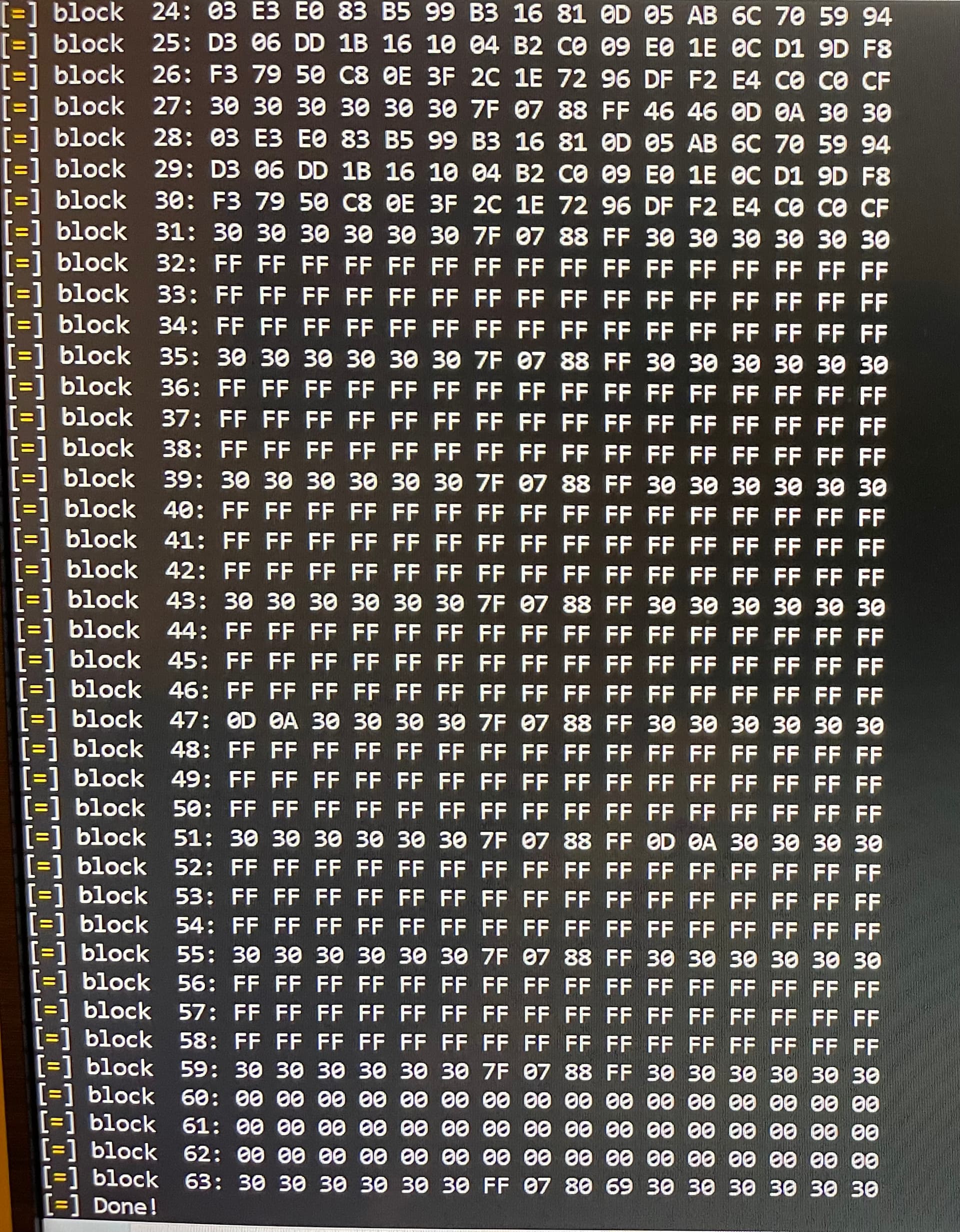

Going of the dump from your screenshot:

Sector 0 seems okay.

Sectors 1-15 (everything else) are toast.

Your access bits for these sectors got all kinds of messed up, probably from a failed write. Unfortunately, they seem set in a state where you likely won’t be able to fix it. The gen2 chip in the Magic Ring can’t be reset with backdoor commands, so you gotta be careful what you write to it.

Basically, you should still be able to change the UID as it’s in sector 0 and that sector should still be writable with keys 314146464341 for A and 303030300D0A for B. Everything else may be hit or miss, since the access bits and their inverse don’t match, which I’m not entirely sure can be fixed. I’ll do some looking later when I’m home.

Sector 0

Key A: 314146464341

Key B: 303030300D0A

Access Bits (Hex): FF078069

Access Bits (Binary): 1111 1111 0000 0111 1000 0000 0110 1001

C1: 0000

C2: 0000

C3: 1000

C1i: 1111

C2i: 1111

C3i: 0111

✓ C1i is the inverse of C1.

✓ C2i is the inverse of C2.

✓ C3i is the inverse of C3.

Block 0: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 1: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 2: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 3 (Sector Trailer): 001

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

✓ Write by Key A

Sector 1

Key A: 314133353038

Key B: 464646464646

Access Bits (Hex): F0FF0000

Access Bits (Binary): 1111 0000 1111 1111 0000 0000 0000 0000

C1: 1111

C2: 0000

C3: 0000

C1i: 0000

C2i: 1111

C3i: 1111

✓ C1i is the inverse of C1.

✓ C2i is the inverse of C2.

✓ C3i is the inverse of C3.

Block 4: 100

✓ Read by Key A|B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 5: 100

✓ Read by Key A|B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 6: 100

✓ Read by Key A|B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 7 (Sector Trailer): 100

Key A

X No Read Access

✓ Write by Key B

Key B

X No Read Access

✓ Write by Key B

Access Bits

✓ Read by Key A|B

X No Write Access

Sector 2

Key A: 303430303632

Key B: 464646464646

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 8: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 9: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 10: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 11 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 3

Key A: 363336343635

Key B: 464630373830

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 12: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 13: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 14: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 15 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 4

Key A: 363636373638

Key B: 363946464646

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 16: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 17: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 18: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 19 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 5

Key A: 36390D0A3030

Key B: 464646464646

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 20: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 21: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 22: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 23 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 6

Key A: 303030303030

Key B: 46460D0A3030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 24: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 25: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 26: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 27 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 7

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 28: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 29: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 30: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 31 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 8

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 32: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 33: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 34: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 35 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 9

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 36: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 37: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 38: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 39 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 10

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 40: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 41: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 42: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 43 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 11

Key A: 0D0A30303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 44: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 45: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 46: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 47 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 12

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 48: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 49: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 50: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 51 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 13

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 52: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 53: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 54: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 55 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 14

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F0788FF

Access Bits (Binary): 1111 1110 0000 1111 0001 0001 1111 111

C1: 0000

C2: 0001

C3: 0001

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

X C2i is NOT the inverse of C2.

X C3i is NOT the inverse of C3.

Block 56: 011

✓ Read by Key B

✓ Write by Key B

X No Increment Access

X No Decrement/Transfer/Restore Access

Block 57: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 58: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 59 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

Sector 15

Key A: 303030303030

Key B: 303030303030

Access Bits (Hex): 7F078069

Access Bits (Binary): 1111 1110 0000 1111 0000 0000 1101 001

C1: 0000

C2: 0000

C3: 0000

C1i: 1110

C2i: 1111

C3i: 1111

X C1i is NOT the inverse of C1.

✓ C2i is the inverse of C2.

✓ C3i is the inverse of C3.

Block 60: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 61: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 62: 000

✓ Read by Key A|B

✓ Write by Key A|B

✓ Increment by Key A|B

✓ Decrement/Transfer/Restore by Key A|B

Block 63 (Sector Trailer): 000

Key A

X No Read Access

✓ Write by Key A

Key B

✓ Read by Key A

✓ Write by Key A

Access Bits

✓ Read by Key A

X No Write Access

1 Like

Thank you for the information, I figured as much I’ll buy another one and hopefully get it to work the second time around.
