I bought a
magic ring from dangerous things and cloned my white paxton door entry card to the TX5577 chip. The ring is intermittent and does not always open the door.
full details of my post can be found here
I am now thinking of getting a Hitag2 wristband, the paxton 2 door system is also Hitag2, can i use proxmark 3 to clone the white paxton card to the wristband in Hitag2 mode?
this is the wristband i am considering
Is it possible to carry out a like for like clone from the Hitag2 paxton card to this wristband using proxmark 3?
HiTag is not super common here on the forum, I personally know very little about them.
I think at the end of the day, it will depend on how the system is implemented, Copying HT onto T5577, may be possible, but if it uses challenge and response, or the full UID you may have some issues.
If enrolling a “bring your own” is possible, that might be your best option, but this will require the access admins to be on board.
Alternatively just try it, Grab yourself those HiTag bands and some T5577 test cards and see if you can get it to work.
Sorry I cant be much help, I don’t even own a HiTag to test for you ( Note to self: get HiTag cards )
Here is a quote from one of my posts, but if you follow it to that original thread, you may get some more answers.
@Devilclarke said, HiTag uses a challenge/response authentication,
I don’t know a lot about HiTag,
so take the below with a pinch of salt
xEM side in EM41xx mode has a 40 bit ID; HiTag uses 48 bit so there could be some issues there but you MAY be able to write more???
HiTag uses ISO14223
Also I am STILL GUESSING here, But Amal released the xHT to probably fill the gap, because there would be no real point dong it if the xEM/ NExT… ( T5577) could emulate the HiTag.
So wait to see if anybody else has some more concrete information for you, otherwise, I guess you have 2 main options
Give it a try ( and let us know )
Grab an xHT
I hope you find a solution
yeah you can just write block by block from the net2 tag to the blank hitag in the wristband.
when i do a auto search on the wristband that has Hitag2 chip the
PM3 does not showing anything. it goes through checking all frequencies but finds nothing.
PM3 read Hitag2 or only Hitag devices.
also the seller of the wristband says that the chip is empty so i need to write to it first and then read. Not sure how to write to it, do i use
PM3 or something else to write
Sorry bud, just saw you posted 5hrs ago and no answers.
I’ll try, but I won’t be much help as I dont have my
PM3 with me and wont have access for a number of hours.
Similar to the
In your command prompts it SHOULD step you through.
then you should get a list of compatible commands
including something like
can you run
and share a screenshot
lf hitag help

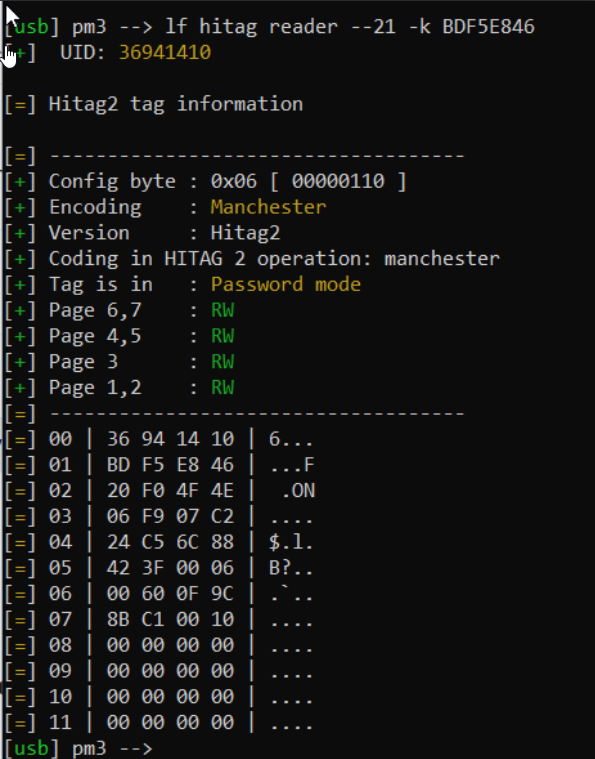

thanks for your reply. here is the output
there are a few things to try in there
I would try
lf hitag reader
then when you have the read data
lf hitag writer
it will [potentially error out, but prompt for the next step
And potentially give you an example you can then copy and adjust your your required data
and repeat the process
Do you see how the commands work
It just gives you options, you choose one, then follow it step by step until you get what you want
Also, FYI, you can shortcut the commands
You maybe able to just write
lf hi r
if there are no other similar commands with the same letters
Hi someone previously provided me with the output of the paxton card, im not sure where they got
but it seems to show all the data on the paxton card, so now when i write this to the wristband, would it be --27 or -p
do all the pages and password need to be written.
wolud this be page 0
lf hitag writer -
you don’t need to write
p0, you also can’t.
that BDF5E846 is the paxton net2 hitag2 global password
thanks, looking at the example to write page 1 and 2 wolud it be
lf hitag writer --27 -k BDF5E846 -
p1 -d BDF5E846
lf hitag writer --27 -k BDF5E846 - p2 -d 20F04F4E
do i need to write the other data on the far right, like 6 or ON, f, $ etc
that is the ascii interpretation of the hex data you’re writing so no
i keep getting a detected header error
i am doing
lf hitag writer --27 -k 36941410 =
p1 -d BDF5E846
is this the correct way to write page 1?
add the space
e2a: you messed up the syntax too
lf hitag writer --27 -p 1 -k BDF5E846 -d 36941410
thanks just tried that but that also shows same error
hm, would you be able to add me on discord (equip) ill be able to go through it with you
question why are you writing to the blocks above 4?
