Resonant Repeater Arsenal

Reviews
1

Thanks to a few dedicated community members
Notably @Hamspiced and @Satur9
There are now a number of resonant repeaters for us to choose from.

I have carried out independent testing on a variety of repeaters, and the below serves to document my findings for you to make your own decision as to what will suit your own scenario.

For the purposes of clarity, I have broken the testing down into 3 Categories
Large Form Factor - Small Form Factor - Sticker Form Factor

Previous similar tests, I carried out with:
My Phone, A PM3 Easy, A PM3 RDV4 and a Flipper.

Due to [considerations, blah blah decisions blah blah, explained, deleted, boring] this round of testing I have chosen to simply use:
EQUIPMENT

  • Vector Network Analyzer
  • Flipper Zero

TARGET
The target was an OG copper antenna FlexM1 (chinese knock off)

PROCESS

  • The average was taken over 5 tests on each repeater.
    *The repeater placed on reader and “implant” presented to reader. using my test rig.

    image750Ă—1000 113 KB

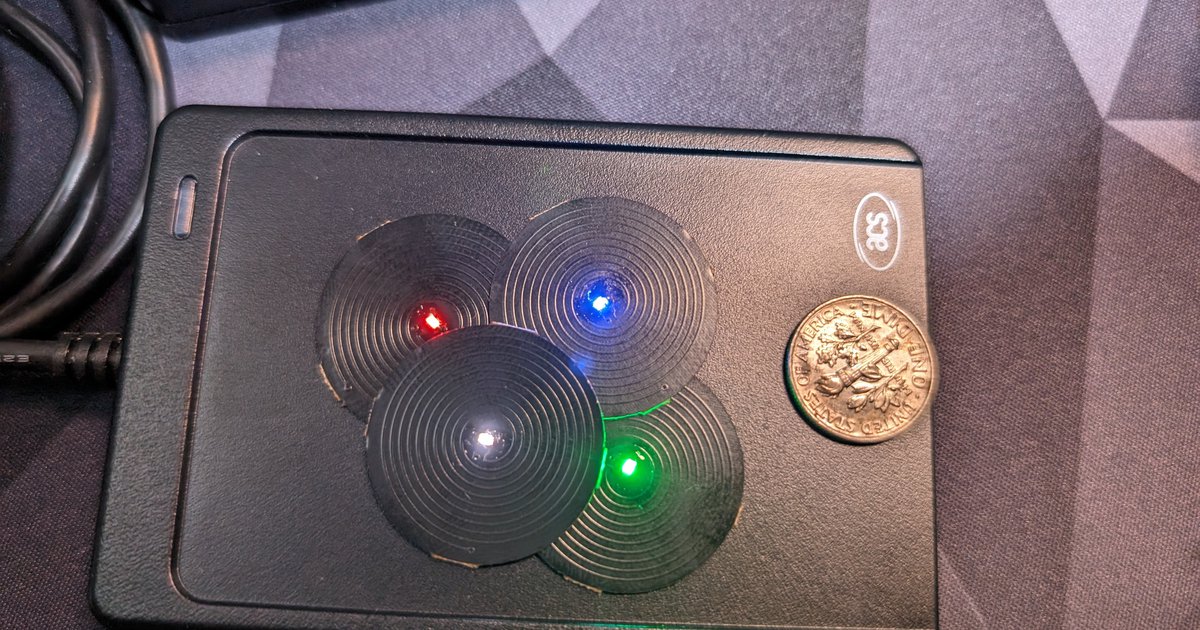

  • I used hammys Diagnostic Discs to find the sweet spot.
    heavy_equals_sign

BASELINE MEASUREMENT
(No Repeater)

FLIPPER :arrow_right: FlexM1
:heavy_equals_sign: 20mm

LARGE FORM FACTOR

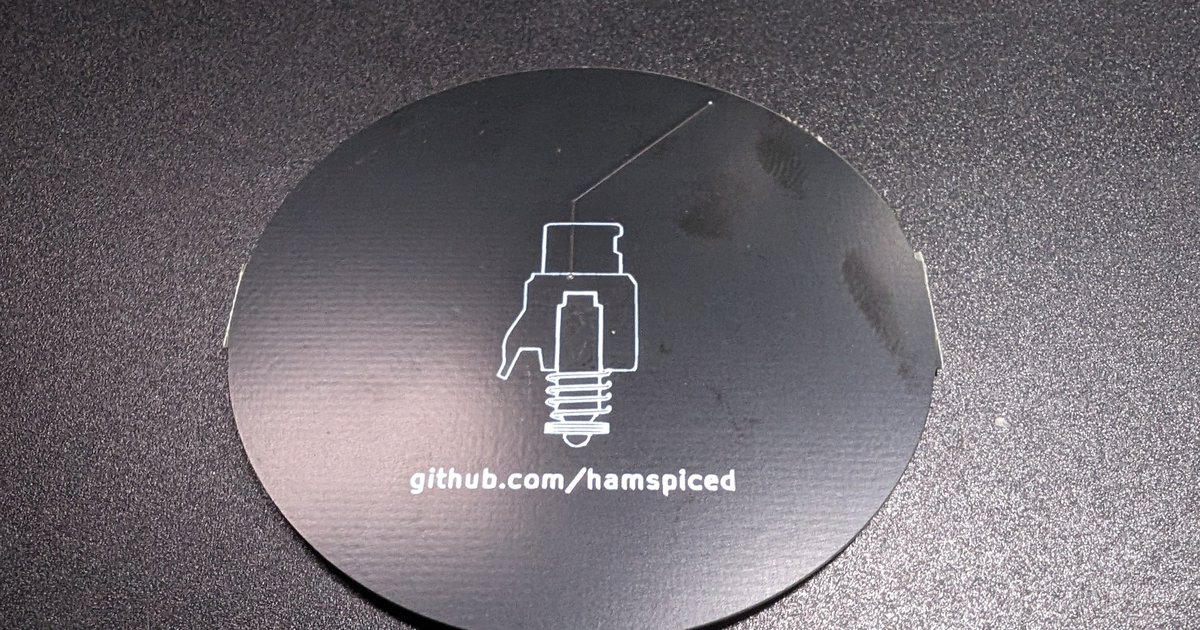

V2.1 - Larger sized repeater
:heavy_equals_sign: 42mm

20240820_110057
20240820_1100571920Ă—2560 275 KB
20240820_110107
20240820_1101071920Ă—2560 276 KB

13.959MHz

image480Ă—675 37 KB

NFC Amplifier V3L
:heavy_equals_sign: 42mm

20240820_110149
20240820_1101491920Ă—2560 249 KB

13.56Mhz
image611Ă—758 34.8 KB

SMALL FORM FACTOR

:heavy_equals_sign: 25mm

20240820_110237
20240820_1102371920Ă—2560 228 KB
!
20240820_110224
20240820_1102241920Ă—2560 228 KB

13.5MHz

image610Ă—749 31.6 KB

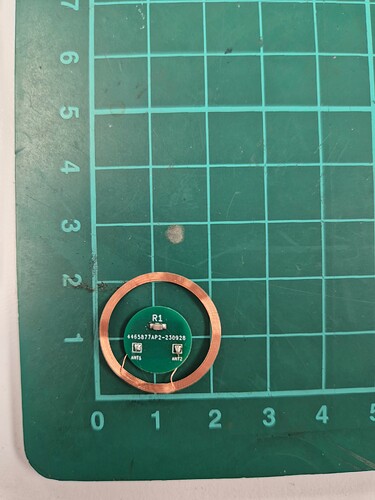

RFID Antenna Adapter for Tuning Antennas

Flex model is the thinnest possible for tight spaces and needs.

PCB’s come bare, you will need to supply your own Antenna coil and capacitor

:heavy_equals_sign: 25mm

20240820_105534
20240820_1055341920Ă—2560 245 KB

13.56MHz

image470Ă—675 30.6 KB

STICKER FORM FACTOR

(testing was carried out on 4 stickers of each offering)

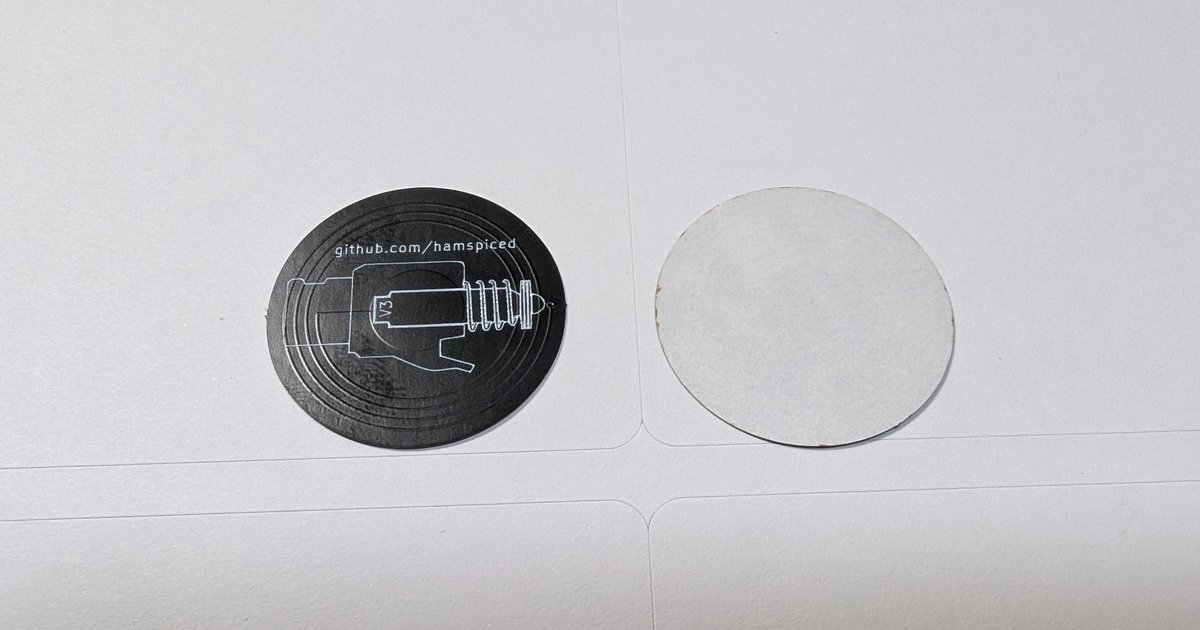

Flex NFC Repeaters 13.56mhz Range Extenders

:heavy_equals_sign: 25mm

20240820_110324
20240820_1103241920Ă—2560 244 KB

13.35MHz

image1306Ă—758 77.9 KB

DT Sticker pack

:heavy_equals_sign: 10mm

20240820_110432
20240820_1104321920Ă—2560 161 KB

12.78MHz

image1384Ă—758 70.4 KB

My personal picks/ recommendations

  • Large Form Factor
    If you have the space, go for a Large Form Factor
    To me there was no discernable performance factor between the V2.1L or the V3.0.
    But the V3.0 is Sleek having no protruding components.
    GREAT for a desk reader mounted under a desk, you could even place the V3.0 on the top surface of the desk as functional eye candy.
    and it is tuned BANG ON!!!

  • Small Form Factor
    They all provide an improvement, so you can’t go wrong.
    The decision will depend on where you want to use it

  • Sticker Form Factor
    Hammys stickers are what I am using and I am super happy with them

BONUS CONTENT

Curiosity test - Field detector = 23mm

10 Likes
2

:face_in_clouds:

As i said in the other thread, thankyou for dedicating the time to test and be objective on these products. I appreciate the dedication to appropriate testing and the results you share.
