Hear me, fellow tinkerers and keepers of arcane knowledge!
Long ago, at the dawn of my RFID journey, I forged a device—crude yet functional, a relic of forgotten code and lost incantations. Time has eroded the knowledge of its creation, and the scripts that once breathed life into it have vanished into the void. Now, with wisdom gained through trials and error, I seek to craft a new and improved artifact—one less riddled with chaos, and this time, I shall scribe its workings upon the sacred tomes (or, you know, write it down somewhere).

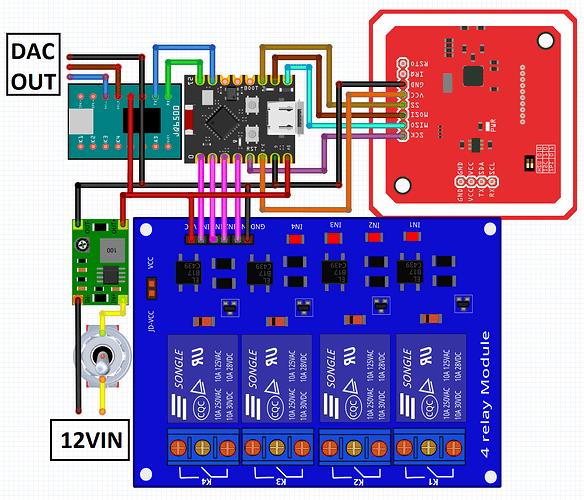

Behold what I have wrought thus far: a design small enough to perch upon the blue relay modules of old. Yet, the fickle nature of these devices has placed their relay output pins in different locations across versions, so I shall forgo fixed placements in favor of flexible conduits (wires, for the less arcane among us).
The foundation bears resemblance to the enchanted door lock of my past endeavors, for I had surplus components to spare. The DFPlayer has been cast aside in favor of the JQ6500—though its power remains untested upon the breadboard altar. This construct shall heed both the RC522 and the PN532, binding their magics into one.
And so I call upon thee, kindred spirits! Should you possess wisdom, insight, or forgotten scrolls of knowledge that may aid in this endeavor, step forth and lend your aid! Let us banish the specter of jank and forge something truly worthy!
Hearken, allies of innovation! A plan is set in motion!
On the morrow, I shall embark upon the arduous task of weaving together fragments of wisdom from various sages of the YouTube realms, forging them into a single, coherent script. The hardware shall be tested upon the workbench altar, its secrets laid bare.
Yet, before I proceed, I must seek the guidance of the Divine Sage DonFire, whose arcane knowledge has illuminated the path of many before me. I shall meditate upon his teachings, invoking his blessing so that my contraption may be free of jank and strong in its workings.
Once the enchantments are stable, I shall inscribe their essence upon the sacred etchings of the PCB and dispatch them to the forges of distant lands for crafting. Their return shall take but a fortnight.
Upon their arrival, my next trial shall begin—to take the weak and feeble voice of our device and forge it into a mighty roar, one that shall be heard across the land! I have already secured a trove of reliable, projectors of sounds, resistant to the storms of old and the trials of time.
Fellow makers and seekers of arcane knowledge, a new trial has emerged!
In my quest to bestow voice upon our creation, I have been testing the BY8301 MP3 module, yet it has proven to be a most unruly spirit, refusing to play nice with the ESP32. Thus, I have cast it aside and turned instead to the JQ6500, a module of equal stature but with a boon—a library forged specifically for the ESP32 has already been discovered!
Though the form of our design shall remain unchanged, fate demands a delay, for this artifact must be summoned from distant lands. Our grand adventure shall be set back by seven moons, but fear not! This is but a minor detour on our path to glory.
Steel yourselves, comrades, for though the road is long, the reward shall be great! Let us press forward with patience, for soon our contraption shall sing with the mighty voice it was destined to wield!
Comrades in creation, though we await the arrival of our sacred hardware from distant lands, progress does not falter!
I have delved into the ancient scripts, gathering fragments of code from past endeavors and the wisdom of example tomes. With great care, I have woven them together into a singular incantation and tested it upon the hardware I have at hand. Rejoice! For it works as intended!
With this newfound stability, I have etched the necessary changes into the design of the PCBs, ensuring that when the final pieces arrive, we shall be ready to proceed without hesitation.
I have also taken this moment of pause to craft default incantations, preparing the very voice our creation shall wield. These sounds shall be the first utterances of the device, spoken with clarity and power once the hardware is assembled. Each incantation has been forged with purpose, its very name inscribed with the moment it is to be spoken. This allows any who wield this device to swap the incantations at their whim, tailoring the voice of the machine to their own desires.
Whether they seek a voice of command, whispers of the ancients, or the melodies of forgotten realms, the choice shall be theirs. The framework is laid, the power of customization granted - we march ever closer to completion!
Good news, everyone! The long-awaited relics from distant lands have arrived!

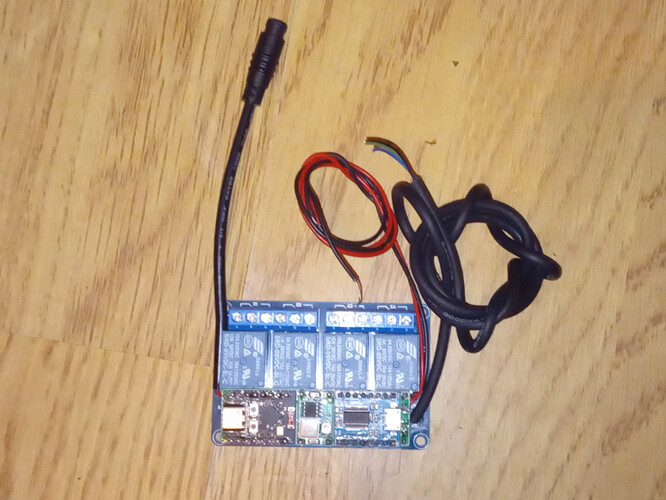

At long last, the device springs to life, its circuits humming with power, its voice echoing through the void. Behold—a demonstration of its might in action! It stands as a testament to our efforts, wielding control over its peripherals with precision and unleashing its arcane roar upon command.
With this triumph, I have amended the PCB and sent it forth to the forges for creation—a process that shall take twelve days. We stand on the precipice of victory, my friends! The device nears completion.
Next, I shall turn my attention to the amplifier, ensuring that our creation’s voice is not merely strong, but thunderous, a roar to shake the heavens! Stay vigilant, for the final steps are upon us!
Seekers of knowledge, makers of the Personalized Electronic Nfc Ignition System —step forth!
Here lies the map to the realm of creation and the arcane script that breathes life into the device. For those who dare to embark upon this journey themselves, all has been laid bare—etched in code and schematic, awaiting the hands of those bold enough to wield it.
Take these blueprints, study them well, and may your own contraption rise from the void, powerful and unyielding! Should you have questions, seek council, and together, we shall refine the craft!
Now, my comrades, we embark upon the next great forging!
The time has come to transform this meek whisper into a mighty roar, a sound that shall not merely be heard, but felt. Here, before us, lie the speakers of legend—projectors of sound, resilient against the storms of old and the trials of time.
To channel their full power, we turn to a small yet formidable ally—the amplifier from the House of LM386. Its secrets are many, but I shall endeavor to house its essence within the very heart of the speaker itself, concealing all but the vital conduits of power and signal.
Once a mere whisper, it now roars, thanks to the amplifier of LM386, whose secrets are housed within the resilient projectors of sound, resistant to the storms of old and the trials of time.
