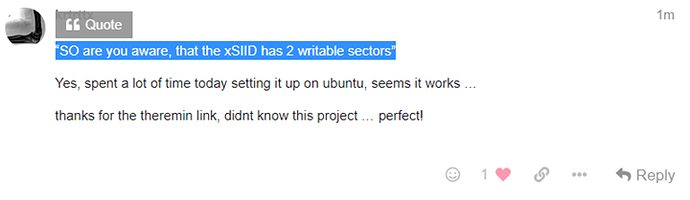

SO are you aware, that the xSIID has 2 writable sectors ( 0 and 1 ), 0 the first 1k ~ 888 bytes works like the NTAG216 ( such as the xNT and NExT etc ) and you can write to it with TgWriter / NFC Tools etc, the other sector (1) you will need to use NFC shell to write to the chip.
Edit: ok, so I had to try this myself.
I have a Sony Xperia 1.the NFC antenna works good, so I initially don’t have a problem, as long as I orient the implant correctly
In any case, I ripped apart a normal tag and placed the coil over my phone, and boy did that make a difference.
I no longer need to “twist” my glassies to get a good read.
Recommended!
Hrmm… I see a 3d-printed phonecase with integrated coil project coming up.
Yet another edit:
So on my Sony Xperia 1,the range became noticeable better, placing a coil on top.
… But the same procedure on a Samsung galaxy s10 didn’t improve at all.
The antenna designs are vastly different, so I assume th xperia has a more ‘concentrated’ beam, whilst the s10 has a broader coverage but a bit weaker overall signal
That is correct. I removed the chip from the coil so it’s simply a coil over the existing phone antenna.
Edit: It seems the effect is purely psychological
I tried reading a standard magic card, and managed to get a proper read from about 28mm both with and without the coil. - no difference
I then tried using the xfd, and had high hopes I could see a difference, as I got a good light all around the coil.
… But got the same result without the coil. (I think the NFC antenna is about the same size, only square)
I also tried to see if I could get any voltage difference on the proxmark, or increase in range on the xfd, but nothing.
The feel of increased range is simply because I now have a visual representation of where to place my implant, and so I place it correctly on the phone every time
