Dhiedas eSmartLock (padlock)

[tac0s]

Found on Amazon.

New Smart Padlock with Key, Heavy Duty Combination Padlock, RFID Padlock with Codes Bluetooth APP Access, Outdoor Waterproof Electronic Key Lock for Gate Fence Shed Locker Garage Garden

INTRODUCTION

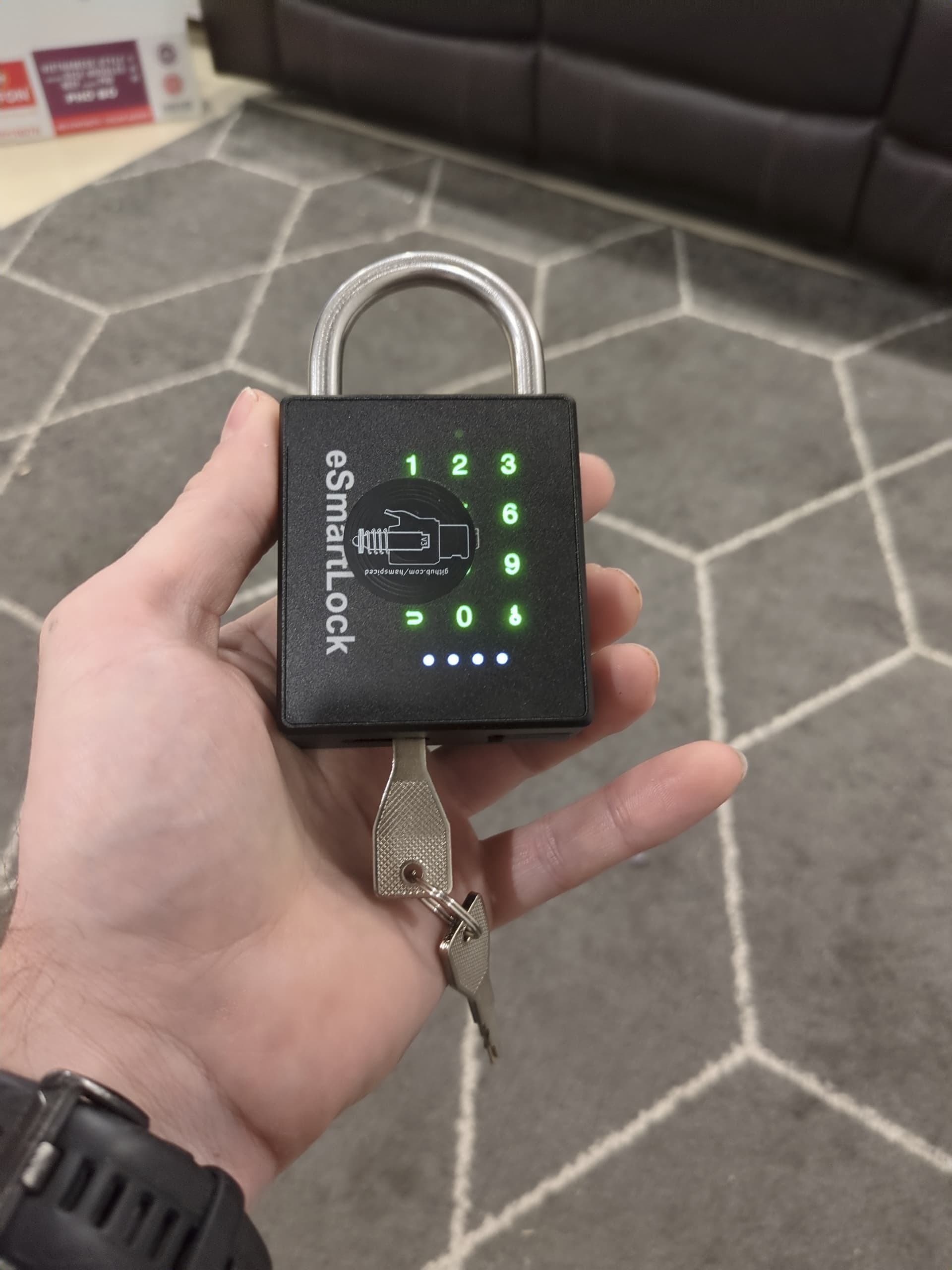

It’s another NFC padlock. But large.

Features:

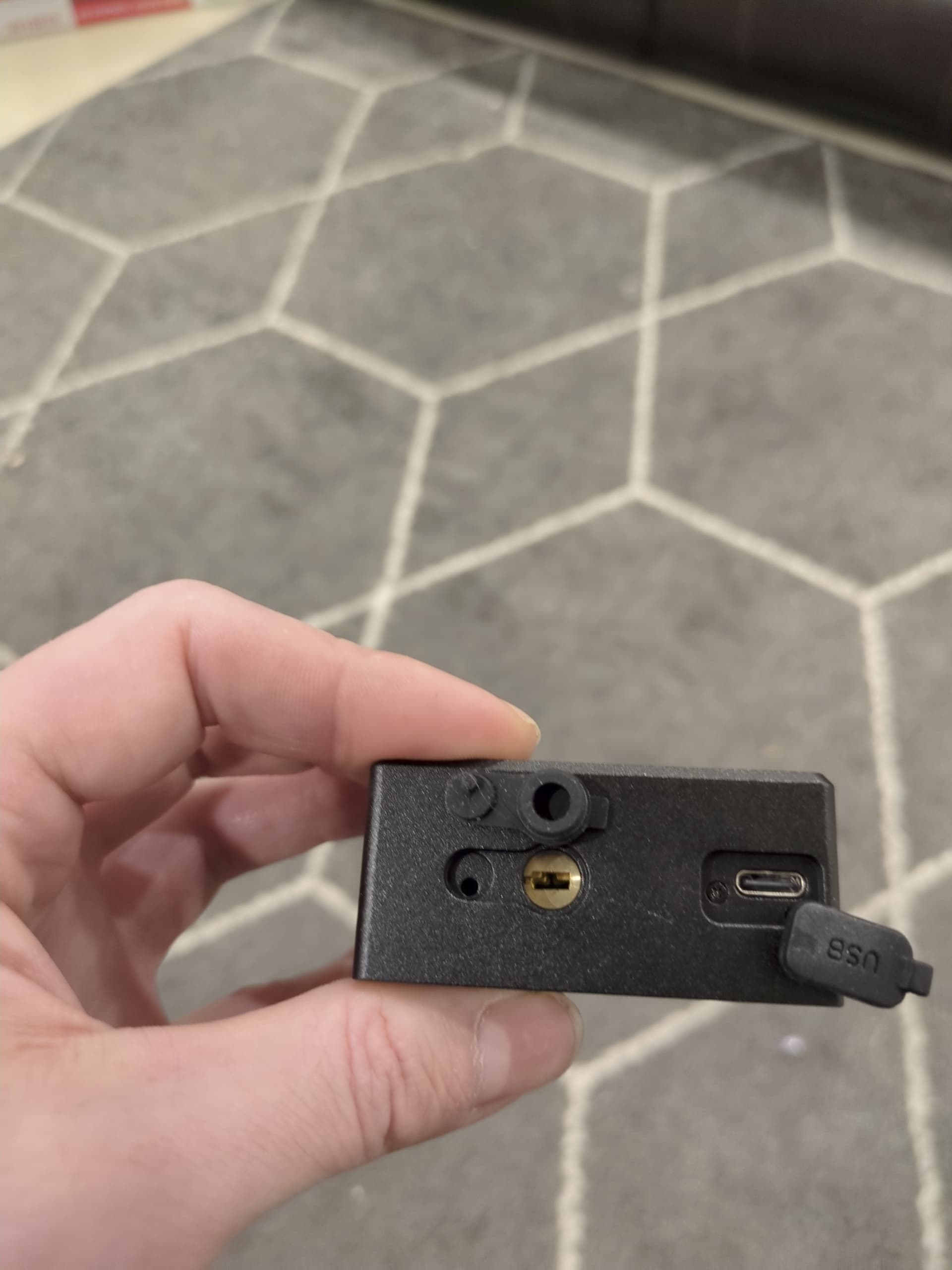

• weatherized ports for:


  • physical key as a backup


  • usb c for charging
• Repeater required for use with an implant (including flex)
• Compatible with the following:
  • NTAG216, DESFire, MIFARE Classic, Apex/flexSecure
• Keypad

TESTING INCLIDING READ RANGES

• Range:

  • ~.5cm NExT
  • ~1cm Apex Mega

• Common Vulnerabilities:

  • All bits off (all zeroes): No
  • All bits on (all F’s): No

• UID Bytes Respected: first 3 only

• Odds and ends:

  • Must be woken by touching the pad to unlock electronically

  • Buttons work through a sticker

  • Shows up in a mode with allows any compatible tag to open the lock

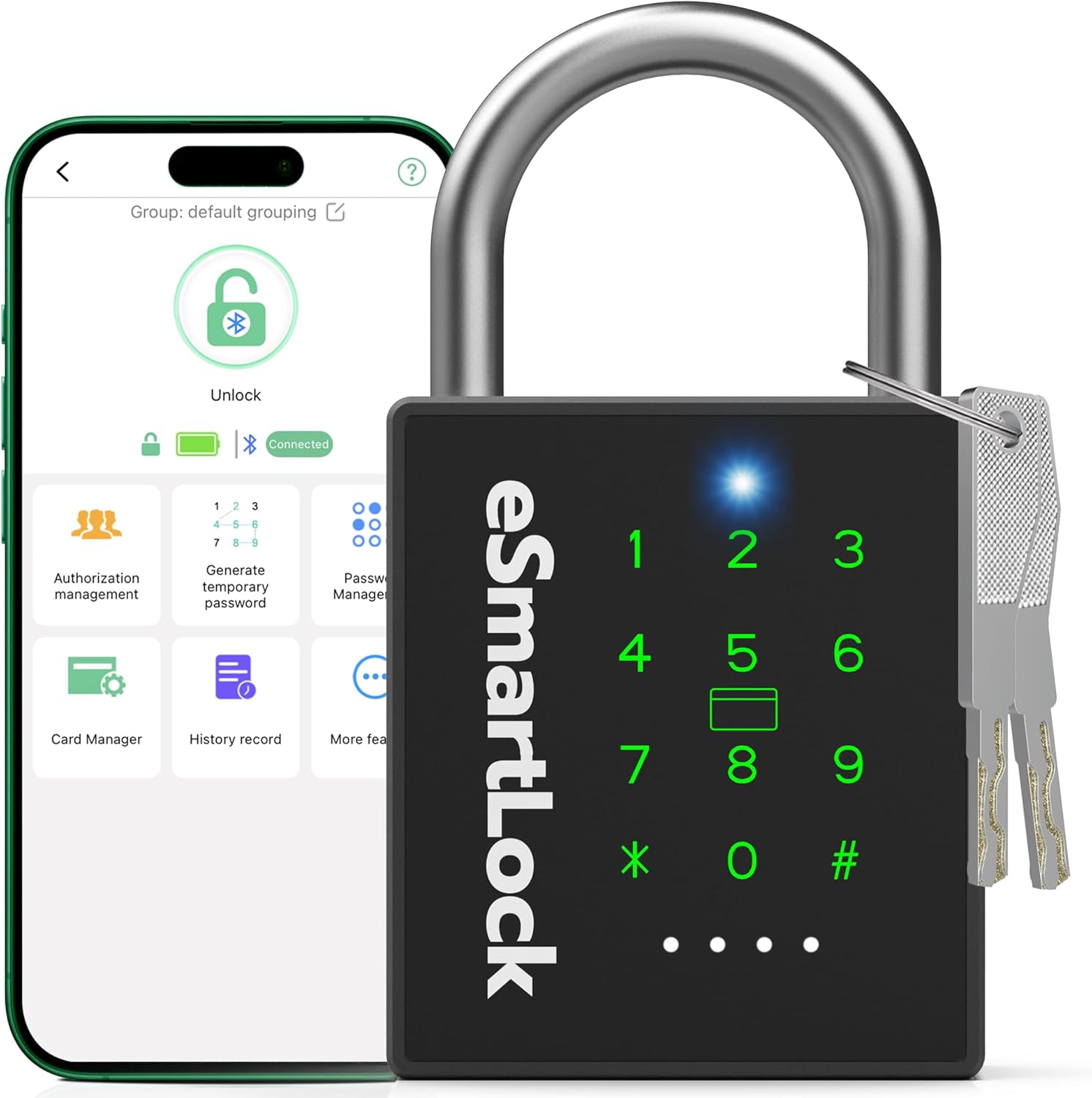

  • Requires an app to manage authorized transponders

    • An account is required to use the app. But email registration is optional.

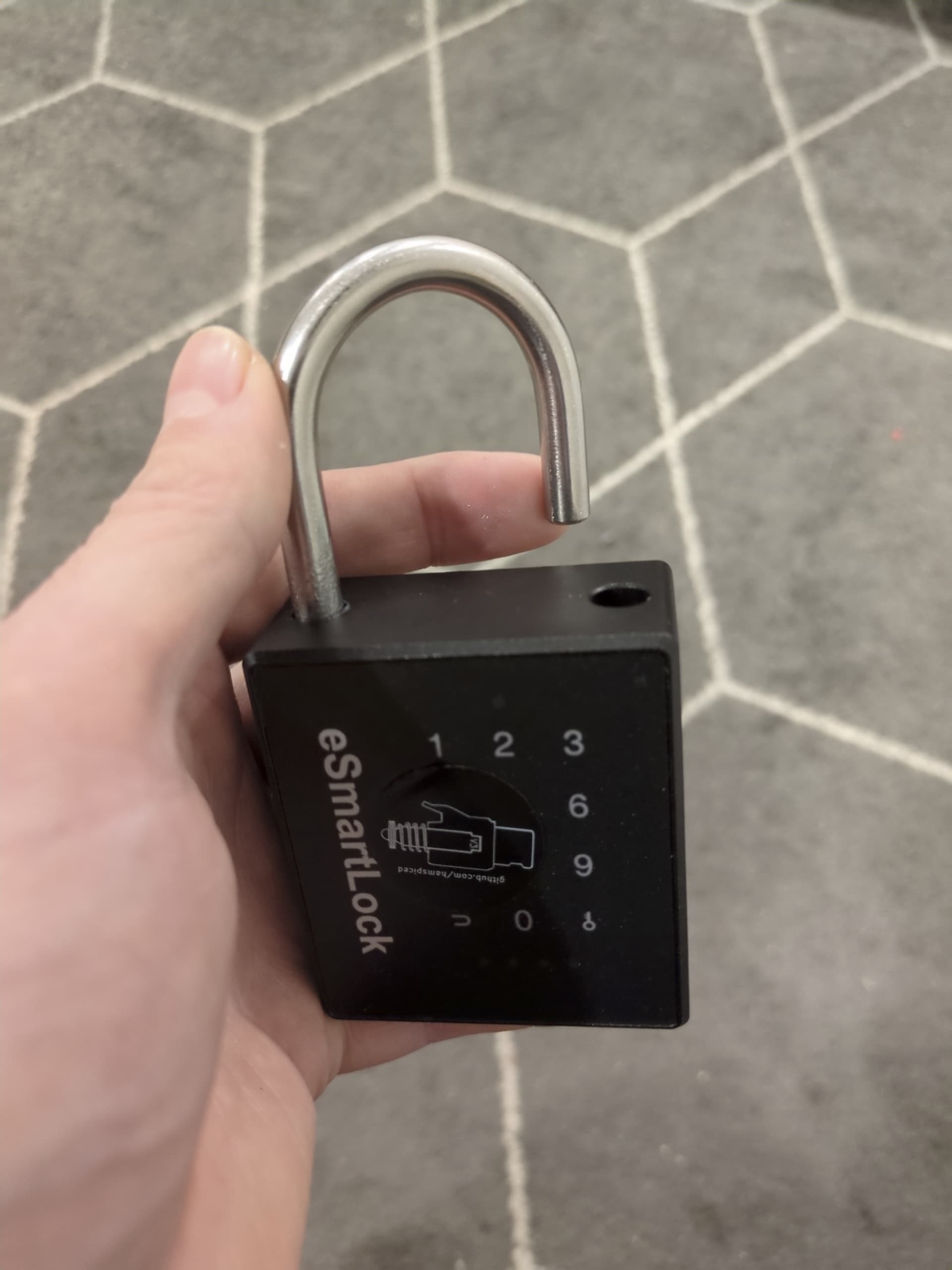

  • Shackle only anchored at one side



PROs

• Works with our ISO14443 products
• Weatherized
• Has a rugged feel
• USB C instead of micro
• Physical key as a backup

CONs

• Only respects the first 3-bytes of the UID
• Physical security is meh
• NFC range is meh

PRICE
USD$69.99

SUMMARY:

It’s big, it’s expensive, light on security, and won’t even work with a flex without a repeater. But I suppose it could be worse.

POLL

Rating by the community

PLEASE ONLY VOTE IF YOU HAVE ONE OR HAVE USED ONE

=

=

=

=

=

PRIDUCT NAME 1-5

• 1
• 2
• 3
• 4
• 5

[Pilgrimsmaster]

Looks very much like this one (but your review is better.)

(****) Smart Padlock TTLock (AliExpress)

TUYA/TTLOCK APP Electronic Smart Door Lock Biometric Fingerprint Padlock Portable Keyless Quick Unlock Anti-Theft Password Lock [image] INTRODUCTION RFID Padlocks are few and far between, and the quality leaves much to be desired. I found this, Bought it, Tested it, and below is my review. TESTING INCLUDING READ RANGES Fresh Battery (CR2) Works with FlexM1 FlexNT The range was contact and difficult to get a read, but I believe this was due to the sensitive touch pad, as the keypad was…

And my follow up post should be of interest

(****) Smart Padlock TTLock (AliExpress)

I’ve been sitting on this update for a little while, but it’s time to share. Well FUCK ME SIDEWAYS What WAS a Disapointmet [image] Is now actually very useable with Hammys V1 [image] Placed centre of the keypad over the symbol. I now get approximately 10mm with both my FlexNT and FlexM1 easy reads. I don’t have a FlexNT thats not inside me but I do have the equivalent of an unencapsulated FlexM1. Tested on my “new” rig [image] I “wakes up” at 10mm but if its already awake …

[tac0s]

You reminded me I didn’t upload all the photos

[tac0s]

@Pilgrimsmaster

And my follow up post should be of interest

I couldn’t get this one to wake up without touching the keypad. Or even read a flex without a repeater. Similar but different. It uses eSmartLock for the app.

[Equipter]

id totally buy these and make some light modifications to able to use them around the house/office if they weren’t 70 goddamn dollars

i love the idea of an NFC enabled padlock but all the ones on the market are featurecreep trash that is needlessly over-indulged with shit like Bluetooth, companion apps etc, i doubt this would hold up to a couple well placed blows with a mallet.

someone make a padlock that has the same basic functionality of an ikea rothult and sell them for 20-30$ and i will spend an amount equivalent to the US defense budget on them.
