Problem reading FlexUG4 [SOLVED] Move the lube packet!

Support
123

Now the swelling has gone down on my Flexug4.
However, I still haven’t gotten any readers (camping, work, garage, Yale, etc.) to respond.
I bought a Flipper Zero, and it works with that, as well as with my Android phone if I remove the case.
When I compare it to my FlexM1, it worked at all these places without any issues.

I’m attaching a picture of my placement.

20240809_120218~2
20240809_120218~21920×2560 394 KB

2 Likes
124

RSP or MFGC should eliminate the requirement to remove the case

1 Like
125

I have ordered repeater stickers, which I will try.
But the big problem is where i could use the chip if no public readers recognize flexug4.

126

Thats a pretty broad statement.

Do you also have a Ultimate Magic Card to test with?

Have you read through the documentation?

3 Likes
127

Hi !

I don’t have another Gen4 card, only the FlexUG4 card. Most of the readers I use are Mifare 1K or 4K, and I use the Flipper to switch between the cards. When I use the Flipper to emulate the card, it works fine, but when I use the UG4, the reader never recognizes the card.

It seems that the antenna might be too small to deliver enough current to the chip, but I could be wrong. Previously, I used a FlexM1, and I never had any problems getting a response from the readers.

1 Like
128

I think there are some other steps we could walk through, but a possibly the easiest fix would be if you could attach an RSP or MFGC to the readers.
Is that doable?

1 Like
129

I can attach RSP in my home , but the readers on my work, and camping sites will be a bigger problem :slight_smile: .
Do you have any other tips ?
Im still waiting for the RSP , will be here in a couple of weeks.

Thanks for your help

2 Likes
130

Your install looks good and nice and shallow, there doesn’t appear to be any swelling, so I think we can rule that out.
However
The fact that your phone can read it, but only just is not ideal.

My initial thought is possibly how you are presenting to the reader.

The usual for an xSeries is forming a + with the implant and antenna.

But with a Flex like the UG4, this should be parallel with the antenna.
Is that how you are presenting?

1 Like
131

So you are wanting just the Tip?

:twss:

Have you used your diagnostic tools* to identify the location of the reader antenna location and the duty cycle?

*xFD and diagnostic card

1 Like
132

I have tried to move the hand in all directions and positions (Thats what she said) :slight_smile: !
But as you mention in next post, I have an xFD and a diagnostic card , and will check some more with that on my strongest reader.
With that reader my flexm1 react 0.5-1cm away from the reader.

20240810_104141
20240810_1041411920×2560 812 KB

20240810_104149
20240810_1041491920×2560 747 KB

133

With the xFD, can you identify exactly where the antenna is on that reader?
Maybe draw the trace with a pencil or whiteboard marker.

Whats the voltage range on that reader?

What voltage are you using?

What mode is your ug4 in?
MF1k 4 Byte?
Can you copy the FlexM1 that works to it?

Can you do a PM3 hf search or TagInfo scan and share it

Also, well done getting a reader for your testing

134

Unfortunately my XFD seemed to be broken, but with diagnostic card it seems alot brighter than on my flipper.

This is all information i can get about the reader

–
Model Name: KR601 IC
Material: ABS + textured PC
Size: 86x86x14mm
Power / Current: DC 12V/Max.70mA
RFID Frequency:13.56MHz
Card Type: Stand MF Class 1K IC Card (Can’t support HID, Cobra, APCiK, paradox, etc.)
Reading Distance: Up to 5 - 10 cm
Output Format:34bit Wiegand
LED Indicator:2 Colors LED Indicators (Red and Green)
Bieper: Yes
Response speed: Less than 0.2 seconds
Proximity distance: less than 0.5 seconds

–

Have tried the ug4 in both mifare 1k and 4k
I have used my flipper to copy the from flexug4 to flipper and emulated the card , works without problem, both with 1k and 4k tag.
The information from the flipper is

Revision: 06 A0
Password: 00 00 00 00
Shadow Mode: Disable
Direct Write Mode: Disabled

MIFARE Classic 1K
UID Length: 4
ATS: No
ATOA: 04 00
SAK: 08
Total blocks: 64

–
Output from proxmark hf sarch is

[usb] pm3 → hf search
:clock7: Searching for ISO14443-A tag…
[+] UID: D6 55 86 13
[+] ATQA: 00 04
[+] SAK: 08 [2]
[+] Possible types:
[+] MIFARE Classic 1K
[=] proprietary non iso14443-4 card found, RATS not supported
[#] Static nonce… 6c4df1bd
[+] Static nonce… yes

[?] Hint: try hf mf commands

[+] Valid ISO 14443-A tag found

–

[usb] pm3 → script run hf_mf_ultimatecard -c
[+] executing lua /opt/homebrew/Cellar/proxmark3/4.18589/bin/…/share/proxmark3/luascripts/hf_mf_ultimatecard.lua
[+] args ‘-c’

========================================================================================
Ultimate Magic Card Configuration

  • Raw Config 000000000000020000000000000000000000000000000000040008003F01
  • Card Protocol MIFARE Classic Protocol
  • Ultralight Mode Disabled
  • ULM Backdoor Key 00000000
  • GTU Mode Disabled
  • Card Type MIFARE 1k S50 4-byte UID
  • UID D6558613
  • ATQA 00 04
  • SAK 08

[+] finished hf_mf_ultimatecard

–
Could it be some settings for the magic tag the reader does not like (ATS) or something like that ? .
Because it seems that the reader is stronger than my flipper reagarding to the light from diagnostic card.

135

Hmmm, im starting to run out of ideas.

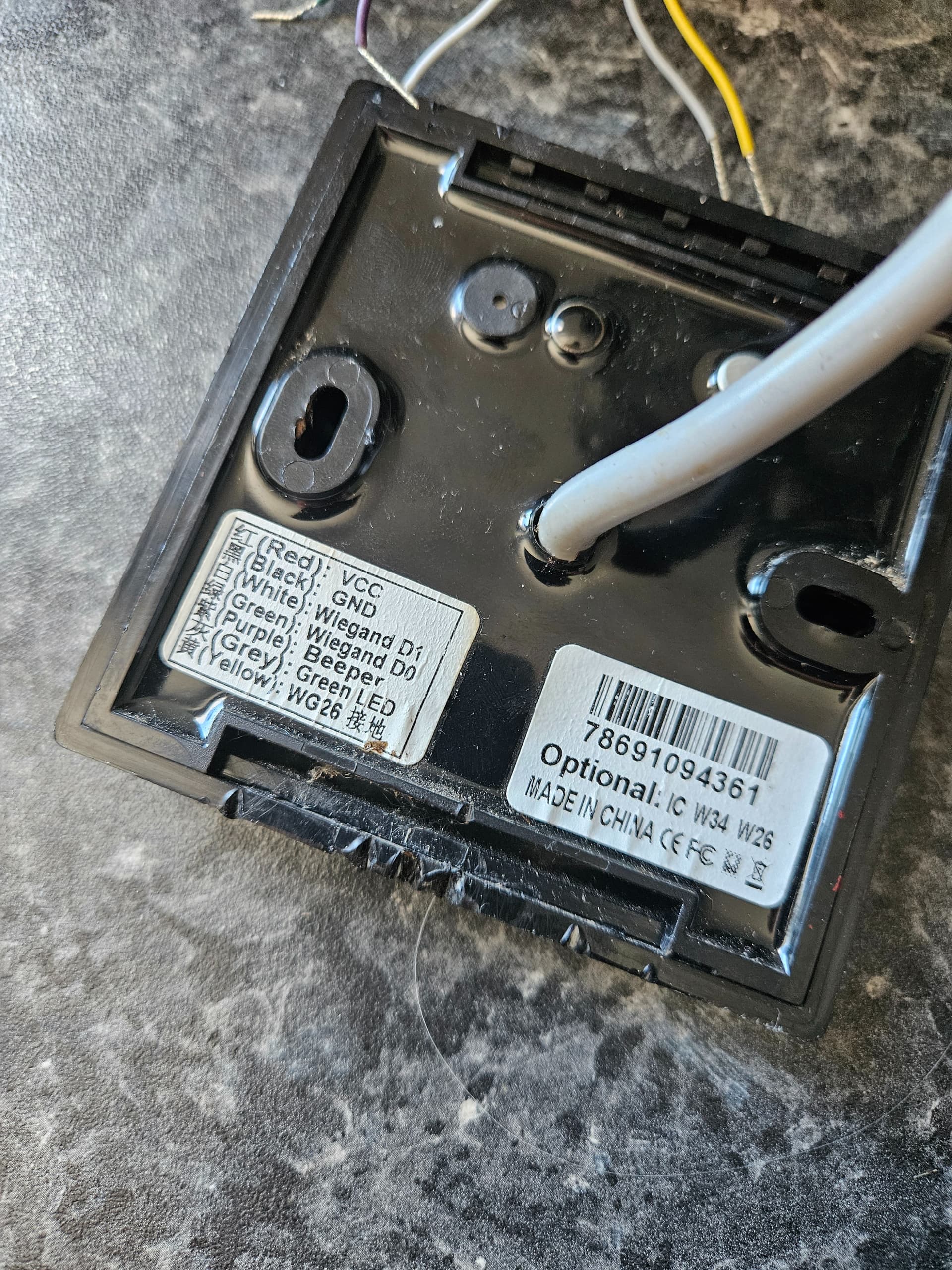

image750×1000 147 KB

Have you tried presenting from the rear?

I’m wondering if the antenna is set away from the front face :man_shrugging:

136

As a gentlemen I always ask.

These readers usually have the antenna coiled around the outer most edges. You may have to present the XFD more to the edge of the device than the inner circle like you would assume.

2 Likes
137

Yes , i have tried from the rear aswell , I may order a ultimatecard gen4 to do some tests.
Thanks for all your help , if you got some new ideas , please let me know.

Thanks

2 Likes
138

Got my repeater sticker today !
The only way I got my reader to read the card was to do like this :slight_smile:

20240813_122547
20240813_1225471920×2560 450 KB

and thats the same for both proxmark, and the external reader , the yale lock never recognize the flexug4(works without problem with my old flexm1)
Will try the locks on work after 1,5 week when my vacaction is over.

2 Likes
139

So what you are saying is “The repeater stickers work where all else fails!”

So basically you need to implant the stickers :wink:

My FlexUG4 reads fine on my phone and Flipper.
I have a Hammy sticker on both and it certainly helps.

We know yours is reading, and your install looks nice and shallow.
It actually looks very similar to mine,

I’m actually a bit confused, because I cant see why its not working as well as mine.
The implant is the same, from the same supplier, same components, same location, same readers.

It looks well healed, but can you confirm how long its actually been installed for?

1 Like
140

So, yours works fine with readers on hotel doors, worksites, etc, and other readers.? Mine was installed three weeks ago, but it healed pretty fast.
I have no problem reading with the flipper , tried a sticker on my flipper , but it got worse.
After placing 2 stickers on my proxmark, im able to read if i put it tight to the hand.

20240813_211006
20240813_2110061920×2560 225 KB

1 Like
141

Ahhh, I think i see the problem with the stickers Sir.

The stickers need to be placed in a precise area. Usually where the signal is strongest.

That is difficult to tell for your case because you are having a hard time reading your implant as it is.

Also 3 weeks is still pretty fresh, i will be willing to wager a bet as time goes on it should be somewhat easier to read. (note i do not have a UG4)

2 Likes
142

This was the best spot i find on the pm3 easy ! , its right under the lead. , and i had to use two to get it work easy !

I have to wait and see, I hope for the best , for its a realy greate chip.

1 Like
