Proxmark3 Com Port issue

[Pedyyy]

Hello All,
I used to use my Proxmark3 a while ago (back in 2018) in order to copy LF Visa2000 badge for myself, and it was working.
Unfortunately, I’ve tried again now to plug to Proxmark3 and my computer do not recognise the COM port for my Proxmark3. When I go on device manager on Windows 7, I have not the COM port neither anything related to the Proxmark3.

I’ve tried to reset the proxmark3 by pushing the button (unplugged device) and the plug the Proxmark on the USB port. Indeed green (A) and Orange (C) LED are on but when I release the button, blue LED (D) blinck once and then switches off.

When plugged, when I press and hold the button for 3 seconds, LED are blinking and then Red (B), Orange (C) Blue (D) are on, but not the green (A) one.

Can you please help me ?

Many thanks,

[amal]

@Pedyyy

When I go on device manager on Windows 7

Windows 7 needs a driver installed for the COM port. This driver is included in Windows Update native driver packs for Win10+

Installing Proxmark3 EASY to Windows 7 laptop

I have my Dangerous Things PM3 EASY running great with my Windows 10 desktop computer, but I’d also like it to run on a Windows 7 laptop for field use. I’ve extracted and compiled on the Windows 7 laptop, making sure that it’s the same latest Client/Bootrom/OS versions that are on the Win10 desktop and flashed to the PM3 EASY. On the Windows 7 machine, since it didn’t automatically understand the device, I downloaded and updated the driver, and it’s now seen as a “ProxMark-3 RFID Instrument” u…

Windows

[Pedyyy]

Hello Amal,
Thanks for your response. This issue here is that the Proxmark3 doesn’t appear at all on the device manager. It’s even not appearing as “unknowned port” where I can click and update with the driver downloaded from the website. Is there a way to hardly reboot the device ?
Many thanks to you.

[amal]

Hmm is this proxmark3 running Iceman firmware and bootloader?

[Aoxhwjfoavdlhsvfpzha]

Are you sure the USB cable you’re using supports data and not just power?

[amal]

@Aoxhwjfoavdlhsvfpzha

Are you sure the USB cable you’re using supports data and not just power?

ah yes this is also a classic troubleshooting step i always forget about… happens more than i would imagine but makes sense.

@amal

Hmm is this proxmark3 running Iceman firmware and bootloader?

Basically if your proxmark3 has the old “main branch” firmware and bootloader, then there is an entirely different driver needed that isn’t even a COM port driver… but this is highly unlikely as even the main branch firmware switched to virtual COM a long time ago.

[Hallic]

@Aoxhwjfoavdlhsvfpzha

Are you sure the USB cable you’re using supports data and not just power?

@amal

happens more than i would imagine

I still have a few of these floating around. Whenever I find out I have a power-only cable, I wrap some electrical tape around one of the ends, to signify “electricity only”

Then years later, wonder why I have this box of USB cables with tape on them…

[Pilgrimsmaster]

@Aoxhwjfoavdlhsvfpzha

Are you sure the USB cable you’re using supports data and not just power?

AND

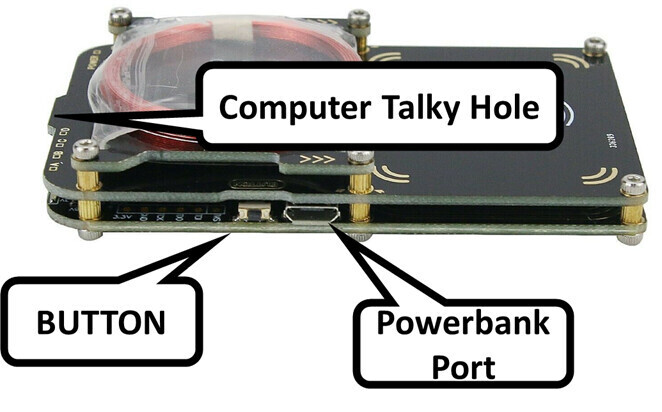

You are plugged into the Short edge (Computer Talky Hole) NOT the long side

[Pedyyy]

Hello All,
Many thanks for your help and message.
If you face the same issue than me, I have been able to solve it thanks to people advice from this forum!
I’ve spent a LOT of time tring to solve the issue, but finally it was a easy one…

Issue : impossible to detect COM or Proxmark
Solving issue: changing cable. I took a Samsung micro USB cable which transfert data, instead of a cheap charging (only) cable.

Thanks to all
