The flexMN batch is now open!

The flexMN is the new flex implant with a Magic NTAG and T5577 chip inside!

Check it out!

12 Likes

Oooooh, I likey…

2 Likes

Yessiree. The excitement never stops in here.

2 Likes

I’m now realizing how awesome a flexMT on one wrist and a flexMN on the other would be…

4 Likes

Yeah, That is pretty powerful; up to 4 different chip types in 2 implants all with great range.
Changeable (N)UIDs and changable / emulation chips

2 Likes

Brilliant!!!

Let’s say I were to go for the custom option…

Would it be possibly to have one without the T5577, allowing for 3 blinkies?

I’d be willing to sacrifice the LF just to have 3 blinkies :sweat_smile:

Also - will white be an option?

1 Like

Custom option :wink:

2 Likes

Awesome :slight_smile:

I’m 99% sure this was answered elsewhere but I guess it’s better to have this in the thread anyways…

What was causing the main issues with the FlexNExT? Was it size? I notice the FlexMN is noticeably smaller! If size was the issue then that’s good.

If not, what makes this more robust and stable than the FlexNExT?


AMAL

that is… surprising.

I think it’s time the flexNExT be removed from the store permanently.

It was the foil coil antenna of the FlexNext that failed, however, the FlexMN has the same antenna as the flexMT, to which there have been no reported problems because the copper coil antenna is much more robust

and Blinkie version

FlexNext 41mm
FlexMN 33mm

2 Likes

Smaller, stronger and more options, I think this is an awesome upgrade
Nice one Amal :+1:

3 Likes

As stated, the base ntag216 transponder we used was a product called a “bullseye” tag from a company called smartrac. It is a silver ink.orinted wet inlay meant for disposable “smart poster” type applications. The printed traces had junctions that were not traditional PCB via technology and the chip itself was attached to the antenna circuit using a small drop of special z-axis conductive glue with no other protections. In short, it was fragile and had a few weak points that just did not hold up.

Also, the LED modules used have similar weak points in their construction.

The solution for the LED modules is to pot the passive components on the PCBs with resin.

The solution to the ntag transponder was to abandon it.

2 Likes

Okay, let’s start being annoying rightaway :slight_smile:

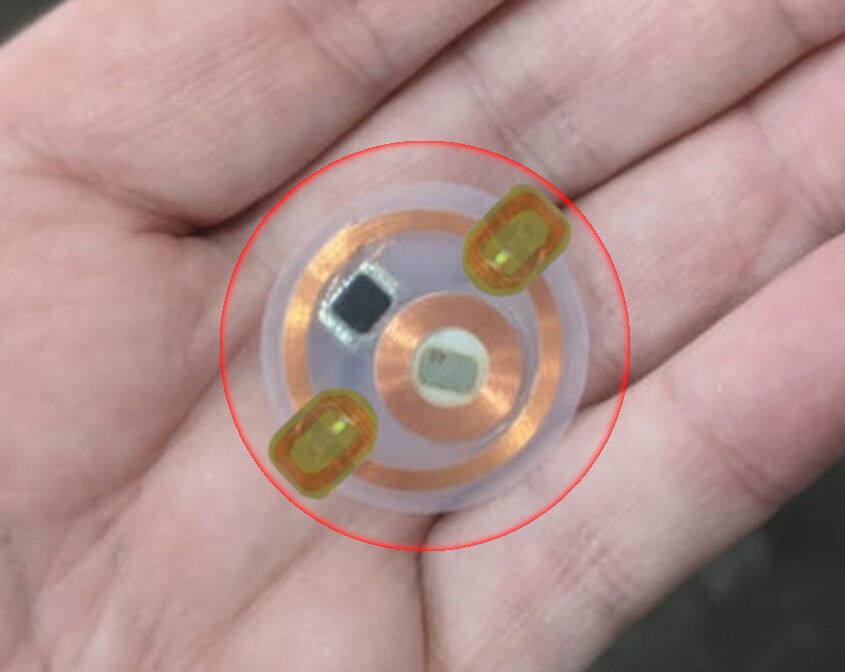

Is this an option?

The red circle is the footprint of a flexNExT.

I’m thinking for us flexNExT wearers reusing our larger pockets for the smaller flexMN: placing the blinkies such that the antenna part of them act as anti-rotation tab, and the LEDs are more or less over or very close to the magic NTAG’s coil so they’re better protected against delamination or whatever is happening to Azflyer’s LEDs.

Or would it kill the field for the magic NTAG if they were placed that way?

Or more realistically:

Also, unrelated: are there LF nails?

1 Like

I think you should start high, to give your negotiations some wiggle room :stuck_out_tongue_winking_eye:


8 Likes

I have no idea how you photoshop a picture so fast. This is mind-boggling :slight_smile:

2 Likes

Haha omg… maybe? Jeeze let me try some things… though I’d probably put the LEDs facing the outer direction

1 Like

Wouldn’t that leave em hanging in the breeze unprotected?

1 Like

Not to be greedy, but do they make a LF nail?

One of a different color in the LF would be slick

2 Likes

Going to be watching this thread with a lot of interest!

I loved the idea of getting a flexNExT before they started showing mechanical failures but couldn’t find a spot that was flat and stable enough for a 40mm implant that would also be practical for reads. My wrists are narrow enough that I’d be worried about tension due to the implant needing to be bent under my skin with something that size. But! At 30mm, this seems like it might work for me :smile:

Will these be crowdfunded/single-batch only? Or will they be available as customs on an ongoing basis if all works out well?

Also, can I just say how much I appreciate the breakdown of the flexNExT’s failurepoints and how they’re being addressed in the flexMN?

(edited for clarity)

2 Likes

MY GUESS is, in order to have the same footprint for an LF one, due to the required antenna size required, if they exist, they would be a lot thicker in height, but :man_shrugging:

1 Like

Not really… the passives run the length of the LED nail
