Thats great
So as long as the password is placed where we want, it will write the new password at the same location (if size permits)?
Also, trying to put an āassembly guideā together, and found one of my stl is flipped
Has anyone tried to use an MF-RC522 with an x series implant? I have tested with cards, keytags, buttons, and rings, no problems.
I can get it to light a diagnostic card.
I canāt get it to light an x field detector.
Does your xFD work fine with your phone?
He posted this about it and I suspect that a Proxmark could better benchmark than a phone:
My question was really because heās having issues with the proxmark3 and Iām wondering if his xFD is just garbage
1 Like
I got a nice bright light from the phone (a pixel 4a 5g) when I tried it (Iāve been out since I posted).
I get better illumination with the proxmark3 with more careful positioning, but still not as bright as the phone.
I canāt get the mfrc522 or the door lock to illuminate it, although I can read a dual frequency ring with both.
1 Like
Hmm
Well, I have read a number of threads on here and the RC522 is apparently not nearly as good at reading X series as the PN532 particularly this one
So, I guess I finish my code and then rewrite it for the PN532. (I may write a compatibility layer so that I donāt need to maintain two versions).
The PN532 is also about four times the price of the RC522 so I would suggest if you are not looking at reading an x-series implant you might want to use the current version.
Edited to add: the compatibility layer will of course be made available just like the rest of the software. My current work is suggesting a full refactoring of the code is probably a good idea (I know. Thatās not the agile way, but this is my project, so I can do what I want.
)
1 Like
Can you give examples of use?
I have a prototype and software development model hooked up to my work laptop.
I use a keyfob with a password stored on it to login to work computers.
Whenever I am required to enter my password I just tap the reader with the keyfob and I am done.
Changes might happen to free up some I/O ports so that it is easy to convert to an access controller instead.
1 Like
Just got a PN532 and started to work on an enclosure ā¦
Looking forward to testing the PN532 reader version.
Iāve just ordered one, so expect a week or so delay.
2 Likes
Iāve packed the current version up as a release (release v2021.10.31) and I am going to be working on preparing for the arrival of a PN532 module.
No new features will be added at the moment, but if anyone wants to request some the GitHub issues list allows for bug reports and feature requests. I have a few in their already but feel free to add more if you have any.
I just noticed that @Nightwalker was using this with an XNT presumably without issues) so perhaps my MFRC522 is faulty, or my XFD is marginal, or he just has a better implant and reader.
Either way, when I start adding new features again I hope to be able to add them for either reader.
1 Like
The xFD does require more power than an NTAG216. But this also turns it into a great tool for making sure that something will work with an x series and where to place to implant.
1 Like
Yes I can confirm my MFRC522 is reading my implanted XNT with 100% reliability, it is working great. I havenāt put the reader into a plastic case yet (which Iām going to do soon - Iāve 3D printed one).
Thank you so much for your efforts developing this and offering to support both readers.
It sounds like that compatibility layer you mentioned will be a good idea and will help in the long run.
Iām enjoying watching this project progress and Iām hoping to develop my version of the setup along and then share when I can. Iāve 3D printed this case, which is meant for a Arduino Nano but will afford plenty of space for the M0. If I get time to get it in there and re-wired Iāll share pics and the experience with that case.
1 Like
Never soonā¢ enough but here it is.

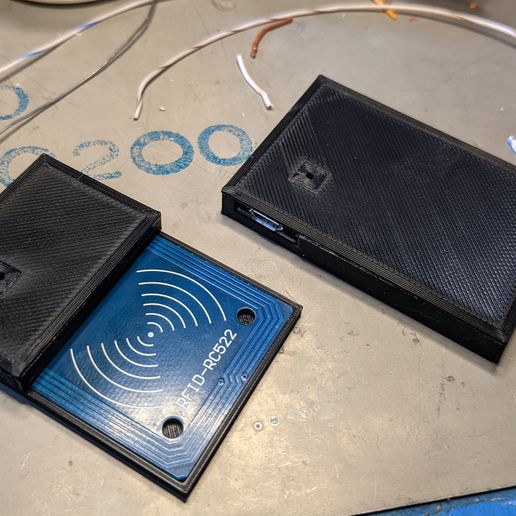

The enclosure for the RC522:
2 Likes
The current version works, but might have issues with X Series.
Version 2 will have the option of a different (better but more expensive) reader module.
While there are improvements to be made this project is unlikely to ever be ādoneā. (Unless I get bored when it is āgood enoughā and nobody else wants to work on it)
1 Like
Itās possible your request is overlooked or forgotten, but you can keep upto date with activity in this thread by doing this
I would but I donāt have time to keep up with that many notifications. I guess I will just check back in like every night or something.
Yeah sorry that sounded a little arrogant of just saying āping me so I can steal your workā. I would like to help if youāve got anything that I could do for it when I have time.
