Portable 13.56 MHz reader size of a USB

[michaelinzo]

I’m looking to buy a 13.56 MHz reader size of a USB saw it before but forget where to buy it etc. can anyone give me links for it? Also I’m planning to buy new chip-implants I got couple of thousands in Paypal, where can I purchase in it or should I just withdraw and pay with debit again?

Best regards,
M1chae1

[Aoxhwjfoavdlhsvfpzha]

A couple small options:

(*****) Digital Logic DL533R USB Dongle PC/SC reader

Here’s another great NFC reader from Digital Logic: the DL533R USB Dongle. I have quite a few Digital Logic products, and they all work great. This little guy is no different: it’s Wrigley’s packet-sized but it packs the punch of an ACR122U. Check it out: That there with the very thin USB cable I soldered out of an old USB mouse tail is my new travel PC/SC reader. And if you’re worried about drivers, worry no more: this guy is compatible with the stock Windows driver or open-source…

(*****) Digital Logic µFR Nano Online NFC reader review

Since we now have a review category and I haven’t really come up with a proper review of this little guy despite working extensively with it for some time, I might as well post one. Please note that this review is rather Linux-centric, as I don’t have Windows. Also, I’m not really interested in additional features that Digital Logic provides in other readers (including the µFR Nano Online) such as the RTC clock. So I’m not gonna touch those. My main interest is of course how and how well I can…

I believe I’ve seen a few more mentioned around the forum, but they didn’t come up in a quick search

[hadoukenboy628]

I’d also recommend thw pn532 which is smaller than a credit card.

https://a.aliexpress.com/_EycDrAT

You didn’t mention what compatibilty for devices you need

The pn532 doesnt need any drivers and works is recognised as a serial usb on chromebook. The acr122u requires drivers if you wish to use it on windows but is also detected on android.

There are dongles and readers which also act as just a uid reader in hex or decimal format. Iirc the uid dongle is the size of a usb flash drive if that’s what you were thinking of.

[Pilgrimsmaster]

@michaelinzo

I’m looking to buy a 13.56 MHz reader size of a USB saw it before but forget where to buy it etc. can anyone give me links for it?

There’s also this

You can get an HF one, or an LF one, OR if you want, you can do a simple mod and make yourself a dual frequency USB reader

Multiclass RF USB RFID Card Reader

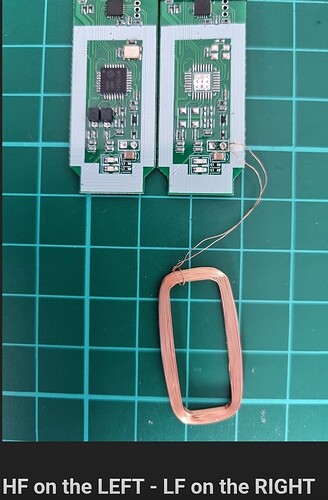

When you buy either a LF or HF “RF USB RFID Card Reader” LINK you will get something like this [20230303_112239] i.e. They look identical BUT, what’s under the hood? [20230303_110807] HF on the LEFT - LF on the RIGHT (ignore the bit at the topof the LF one, that is another little project you’ll hear about soon enough) does anybody notice anything … … … … … Yep, Thats right, the HF reader has everything the LF one has ( except an LF antenna ) and the LF one is “missing…

[XEMON]

@hadoukenboy628

I’d also recommend thw pn532 which is smaller than a credit card.

What do you use to drive it (PC&android)?
I tried a few things and never got it to work right …

[hadoukenboy628]

I had this but never managed to make it work. Maybe they sent me a lf instead of hf one? I think they’re uid readers only though?

[hadoukenboy628]

I primarily use it on android on mtools or rfid tools apps… Never had a need to use it on windows and I’ve been without a windows device for a few months. When i ws using windows i used a acru122 or omnikey variant.

Lately I’ve been using it on chromebook via the rfid tools app since it’s recognised on there as a serial usb.

I know there’s a few versions of the pn532 so there may be mixed results. I got both of mine from this store

MI YU KOUNG Official Store

MI YU KOUNG Official Store - Amazing products with exclusive discounts on...

One issue i had was when it wasn’t working it turned out to be a cable issue. So they might be quite picky in that respect.

[XEMON]

I’ll try a few more cables.

Mtouls seam to recognize it, but it Ask to get thé payé version … Which one do you have?
(I don’t mind paying if it works )

[Pilgrimsmaster]

@hadoukenboy628

Maybe they sent me a lf instead of hf one?

Easy to pop apart and see
Pull the cap off, then the collars top and bottom and viola

@hadoukenboy628

I think they’re uid readers only though?

Correct

@hadoukenboy628

never managed to make it work.

I had no problem with mine with regards to reading, the only “problem” is the Type C adapter adding to the fragility of the reader plugged into a USB, and trying to get a read without bending it all with your hand

[hadoukenboy628]

I have the paid version since the last four years. I was using the acr122 before. I never really fully utilised all the app features but it was worth it for what it was back then (half the price what it is now). The good news is you can use the same order code to activate the paid version of mtools ble if you are using that too ( i use my chameleonUltra SE with it). And to be honest the product support from Wilson is pretty good as well. Even if you get stuck in the methodology he will reply and help you through it.

[hadoukenboy628]

Ooh la la, i love a bit of pcb porn. It’ll be lost somewhere to the box full of crap gods.

[XEMON]

Hers another for ya

[hadoukenboy628]

Haha. Yeah that’s the pn532 i have.
