X Access Control lock for a car door

Support
1

Hi I’m Aaron and I’m working on getting my car to lock/unlock with my NExT implant. And I’m having issues getting the xac to work with the door lock actuator I bought off Amazon. So I was wondering if y’all lovely cyborgs would mind helping.

The things I have are the lock actuator and xac I’m pretty sure I’ll also need a fuse and relay but I’m not sure which ones I need or how to do any of it.

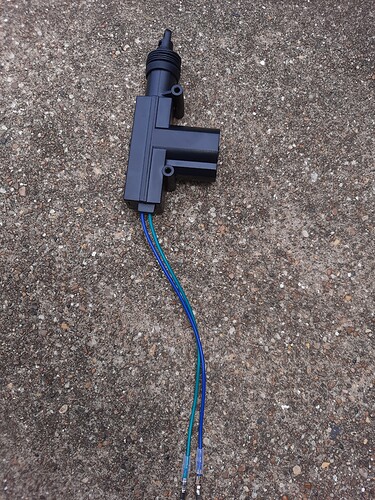

This is the door lock actuator.

20210622_133223
20210622_1332233000×4000 5.51 MB

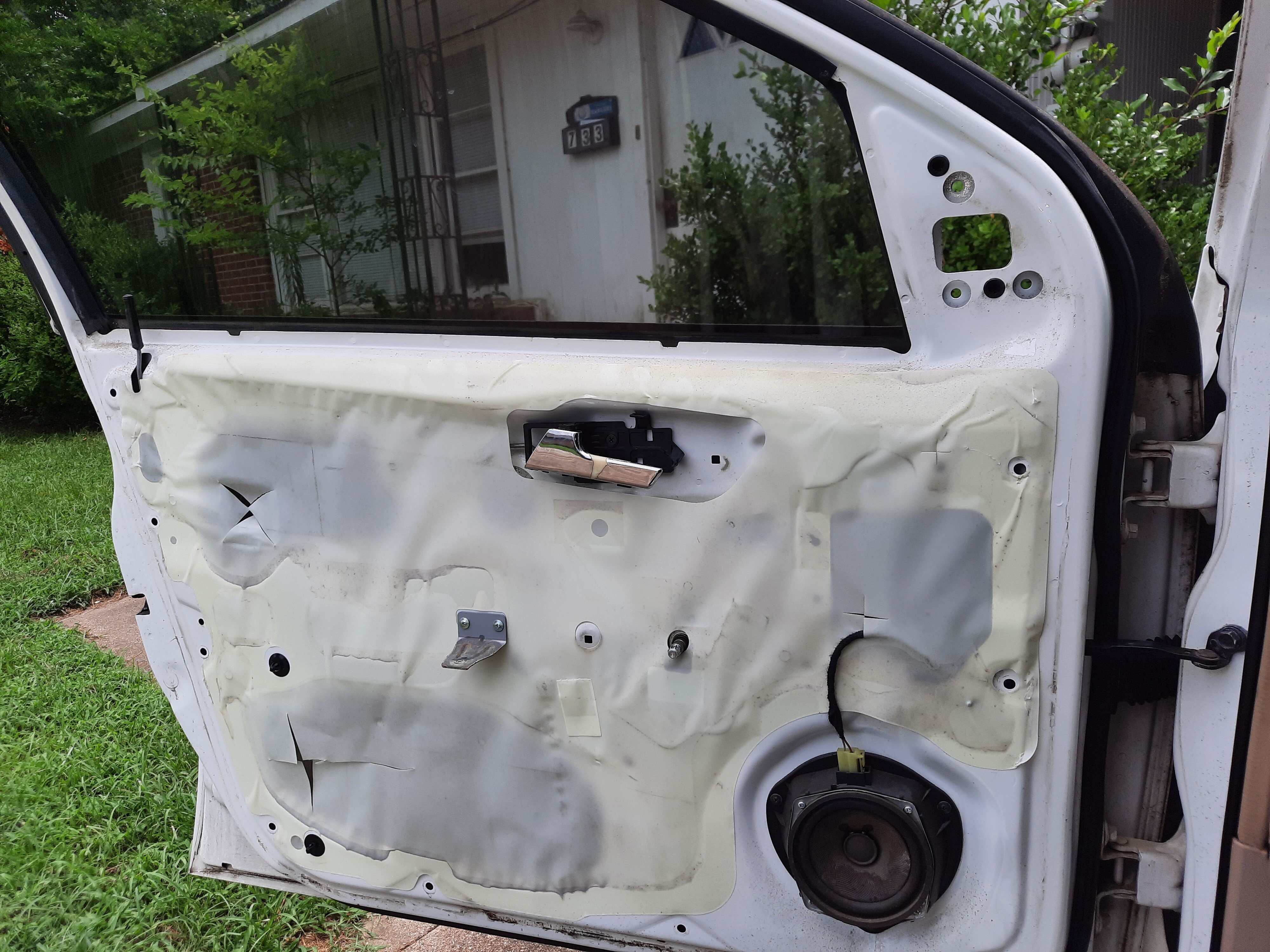

This is the inside of my car door it has manual locks and the only way to use the lock is to push down the poppy uppy thing.

20210622_133231
20210622_1332314000×3000 2.21 MB

I just have no idea how to get the xac to work with the actuator and I would appreciate any help. Thanks in advance.

3

The model number is PDL-50

4

imagen

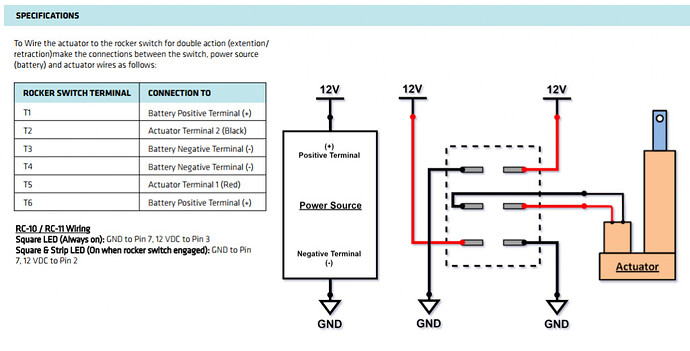

This is the theory, you need to put voltage across the poles to make it work, so with this kit: https://dangerousthings.com/product/xac-v2/
connected in parallel you could enable it to work when detecting your implant

Esta es la teoría, necesitas poner voltaje en los polos para que funcione, por lo que con este kit: https://dangerousthings.com/product/xac-v2/
conectado en paralelo podrías habilitarlo para que funcione al detectar tu implante

1 Like
5

Which xAC do you have?
I assume the xAC V2?

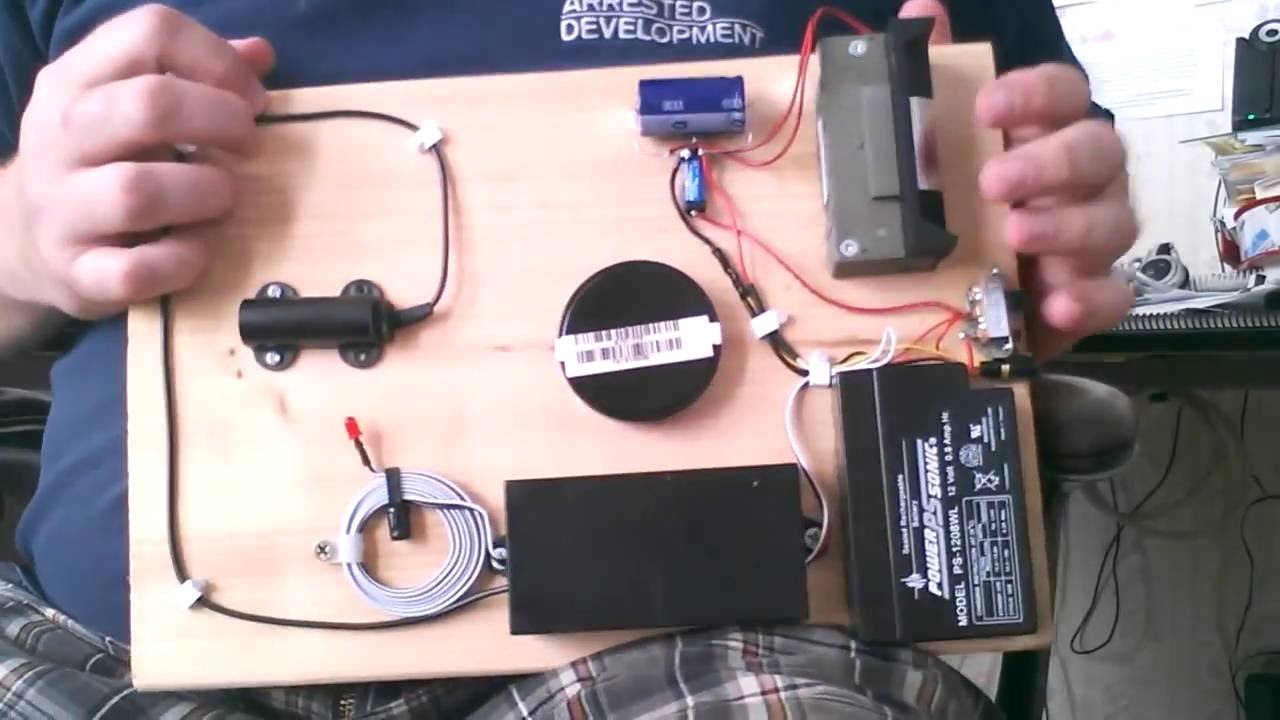

If so, watch this video as a starter

If you have the V1, then watch this video

Those videos will give you an understanding on how they work and where to start.

With your specific door, can you post a photo of the actuator inside ( behind the white plastic sheet ) it should be connected to the “poppy uppy thing.” via a metal rod.
You probably don’t need to introduce your new actuator, but rather add the xAC inline with your factory lock system.

To get the doors to Lock OR Unlock is relatively “simple”, if you wan’t to Lock AND Unlock, it will take a little more Jiggery-Pokery.

The green and blue wires are pretty “standard” for lock / unlock.

Do you have a wiring manual for your car?
Do you have a multimeter?

Here is a little animation that may also help you visualise what you are trying to do

DoorAnimation1
and you will be introducing the power with the xAC

I would recommend a bench setup before messing with your car.

Also, can you post a photo of your key fob?

Ideally the buttons AND with the Fob opened showing the circuit board ( If you can tell us the remote battery voltage, if it is not clearly shown.

That should do as a starter, and we can help you through the next steps as and when you can provide the information I asked for above

1 Like
6

The “poppy uppy thing” is connected via a rod and linkage to the locking mechanism. The actuator end will move 3/4 of an inch when powered. You will need to be able to power it in reverse too if you want it to also be able to lock.

Basically you want the actuator to actuate the same mechanism as the “poppy uppy thing” but it will need to be controlled by something else. I suspect you will need an H Bridge to control the direction and a microcontroller to activate the H bridge when the XAC sends a signal.

1 Like
7

AKA

:stuck_out_tongue_winking_eye:

8

I read the original post as being he has a manual locking car with no key fob. In which case he will need an actuator.

2 Likes
9

Yeah, Fair point.
I guess we will wait and see…

If that is the case, the actuator he has, is just a slave, Personally think it may be easier with a master unit, at least that’s how I would do it and some mounting hardware would also make it easier to install

10

Sorry I did a bad job at explaining my car has a very basic lock. The pushy uppy thing I referred to is the door lock indicator which is connected to a metal rod connected to a lock so I have to move it up/down to unlock/lock my car. So there’s no buttons or levers or anything

11

Not at all, I did a bad job reading :wink:

So @Zwack was correct

Personally, I would grab a full kit ( I am pretty sure they are quite cheap )

And watch a video like this for the install

Again, I would recommend a bench install first, so you can get it operating before you install it into your car…
And we can talk you through that when you get it

12

My question is, why are you trying to actuate a single door lock,

And not use the relay to mimic/bridge the door unlock button? That’s my plan

13

Manual door locks do not have door unlock buttons that can be bridged with relays.

Only five of my vehicles have had electronic door locks, out of ten. (A couple of the Jeeps barely have doors).

14

Derp, I didn’t see that my bad

I forget that’s even a thing these days, since my economy car still has power windows and locks

15

I got me one ordered and in hindsight I don’t know why I just bought one actuator instead of the full kit.

1 Like
16

I usually drive cheap, older 4 cylinder cars… When it is just “my car”.

Mazda 323 and Dodge Neon manual locks, Saturn LX and LX2, both had central locking.

So, still 50/50.

17

Yeah I once had a car with powered locks and windows but I parked upside down one day and apparently that’s bad for cars.

Same here Im currently driving 2008 Chevy Aveo that I got for $600 all I really car about is a working ac

3 Likes
18

:rofl:

4 Likes
19

Engine and brakes.

Personally, my newest car was a 1999, our current latest vehicle is a 2002 Jeep (technically all 3 of the Jeeps are my wife’s, 1951, 1976, 2002)

20

I’ve been wanting to get a jeep but haven’t gotten around to it yet.
I have the Aveo and a 2000 gmc sierra 3500

I also once had a 2002 Chevy cavalier but I try not to talk about that one

21

JEEP - Just Empty Every Pocket. :slightly_smiling_face:
