The anti🚫-derailment🚃 & thread🧵 hijacking🔫 thread🧵 ⁉

[TalkingWaterfall]

Alright, thanks for the feedback. It’s not a huge issue with placement, so I’ll leave it as-is.
Since I have you around, I saw you posted some threads on the conversion process.

Here is a picture of the LAKS Pay module that I’d be looking into getting converted. Can you say from this if it’d be a good candidate for conversion?

[Pilgrimsmaster]

@TalkingWaterfall

Can you say from this if it’d be a good candidate for conversion?

Thats definitely an @Amal question.

Yours looks slightly different from the LAKs conversion service example

My GUESS is, it looks promising, Hopefully Amal can just encapsulate it for you BUT that’s purely my guess.

I loved having my Payment conversion
Good luck with yours

[invalid_signal]

@TalkingWaterfall

These are my first two implants, yes.

[invalid_signal]

Thought this was pretty neat. Might be good for turning an apartment deadbolt lock into RFID.

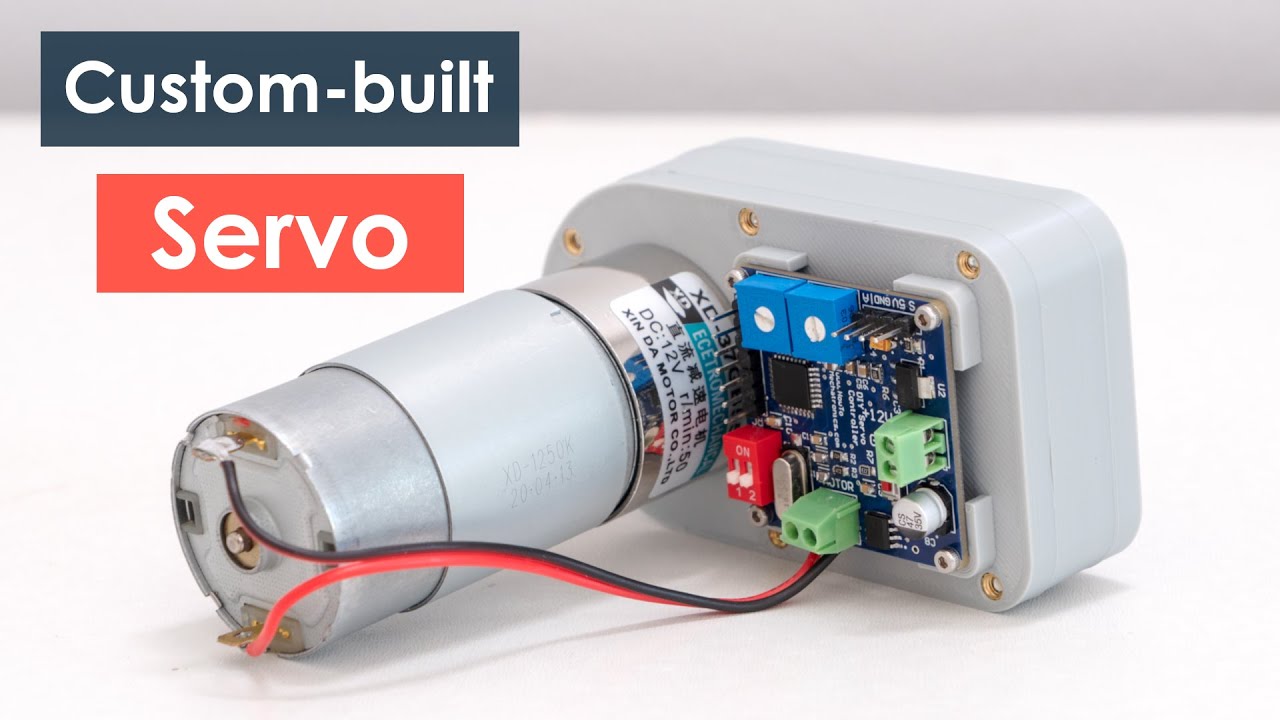

Turn any DC Motor into a Servo Motor

[amal]

@TalkingWaterfall

it’d be a good candidate for conversion

I can convert these yes.

[Pilgrimsmaster]

@darthdomo

make sure you open it up and remove the clock capacitor

Thanks for that, I have one too but i wasn’t aware.

I add that to my list of things to do

[amal]

@Pilgrimsmaster

@darthdomo

make sure you open it up and remove the clock capacitor

Thanks for that, I have one too but i wasn’t aware.

Remove or replace?

[darthdomo]

Just remove on most models, but can replace if you’d like. On most revisions, the system will still work completely fine without it. It’s meant just to keep the clock during power outages and such.

On the 1.6 motherboard revision, the cap is required for the system to boot.

Gold colored supercaps are less likely to leak, and were used on the 1.6 revision and some 1.4 motherboards. So those are usually fine to leave.

Every other revision though, just rip her out, and clean up any existing leakage with IPA.

Quick edit: great resource: Xbox:Clock Capacitor - ConsoleMods Wiki

[Hamspiced]

So that one $0.70 part was responsible for destroying all those consoles? And the shitty chip soldering jobs?

[Aoxhwjfoavdlhsvfpzha]

I’ve always heard that the PM3 easy and RDV4 perform about the same, but my easy can’t read my xSIID and my RDV4 reads it easily, so for those of you that have both:

Performance only, not considering pricing and whatnot.

• Samesies
• RDV4 is more better
• Easy is more better

[Pilgrimsmaster]

@Aoxhwjfoavdlhsvfpzha

so for those of you that have both

Dont make me dig them out …

[sigh]

OK Just because its you @Aoxhwjfoavdlhsvfpzha

Did you want both LF and HF tested?

I’m guessing since its not a direct comparison you don’t want the DT LF Antenna tested

[Aoxhwjfoavdlhsvfpzha]

More data is more better, so I’ll take any comparisons you feel like doing!

But initially I was thinking HF/LF stock antennas

Though, unfortunately I don’t yet have any LF implants to pitch in my own experience there

Speaking of my own experience, my RDV4 has slightly but noticeably outperformed my easy when it comes to both HF and LF cards, and as noted earlier is the only one that can read my xSIID, doing so quite easily

Also, thanks!

[Pilgrimsmaster]

@Aoxhwjfoavdlhsvfpzha

my RDV4 has slightly but noticeably outperformed my easy when it comes to both HF and LF cards,

Same for me, but I would still reccomended the Easy for Price over the RDV4, I dont think the 6x Price is worth it

@Aoxhwjfoavdlhsvfpzha

can read my xSIID, doing so quite easily

I’ve never had a problem reading any of my implants with my Easy either, fortunate I guess.

It took me longer than I thought because I needed to update my RDV4

@Aoxhwjfoavdlhsvfpzha

initially I was thinking HF/LF stock antennas

I used blank cards as a form of measure placed between the Antenna and implant

PM3 Easy

xSeries ( xMagic ) LF

4 blank cards ( 3 was 100% hit rate, 4 got the occasional false indala read )

xSeries ( xMagic ) HF

Blank cards were placed ontop of the stand offs, which are 2 cards high.
5(7) blank cards total

Full sized ISO cards

T5577 Card
45mm

MF1k Card
50mm

PM3 RDV4 ( Shroud off)

xSeries (xMagic) LF

4 cards

xSeries (xMagic) HF

12 cards

Full sized ISO I didnt have enough blank cards for an accurate measure, but my measurements should be pretty close

T5577 Card
50mm

MF1k Card
90mm+

@Pilgrimsmaster

I’m guessing since its not a direct comparison you don’t want the DT LF Antenna tested

I decided not to, as mine was a very early version of the antenna, and it never really performed as expected.

But I can if you want me to

[Aoxhwjfoavdlhsvfpzha]

I totally agree about the price, but I am glad that the rdv4 seems to actually perform at least a little better

That was a lot more data and a lot more measuring than I was expecting, very much appreciated! I dunno if anyone’s mentioned this to you, but you’re one of the coolest dudes on the forum

@Pilgrimsmaster

I decided not to, as mine was a very early version of the antenna, and it never really performed as expected.

I’ll let you off the hook on that one, but extend an extra ask out to anyone that happens to have both the rdv4’s biohacker antenna and @XEMON’s fancy lf antenna for the easy to compare those two for something a bit more apples to apples

Thanks again for the in-depth testing!

[Pilgrimsmaster]

@Aoxhwjfoavdlhsvfpzha

I dunno if anyone’s mentioned this to you, but you’re one of the coolest dudes on the forum

[Hamspiced]

I second this statement.

[invalid_signal]

I third that statement

Also:

@Pilgrimsmaster

I used blank cards as a form of measure placed between the Antenna and implant

Edit: Also, is there a 730 day badge? Asking for a friend…

[Pilgrimsmaster]

@invalid_signal

@Pilgrimsmaster

I used blank cards as a form of measure placed between the Antenna and implant

The blank cards work well as a standoff, as seen in Amals video

The Cards are approximately 0.8mm thick

[/quote]

Edit: Also, is there a 730 day badge?
[/quote]

[invalid_signal]

@Pilgrimsmaster

The blank cards work well as a standoff

I’ll quote this the next time you talk shit about us Mericans using anything but the metric system

[Hamspiced]

TIL i am 2374.5 blank cards tall
